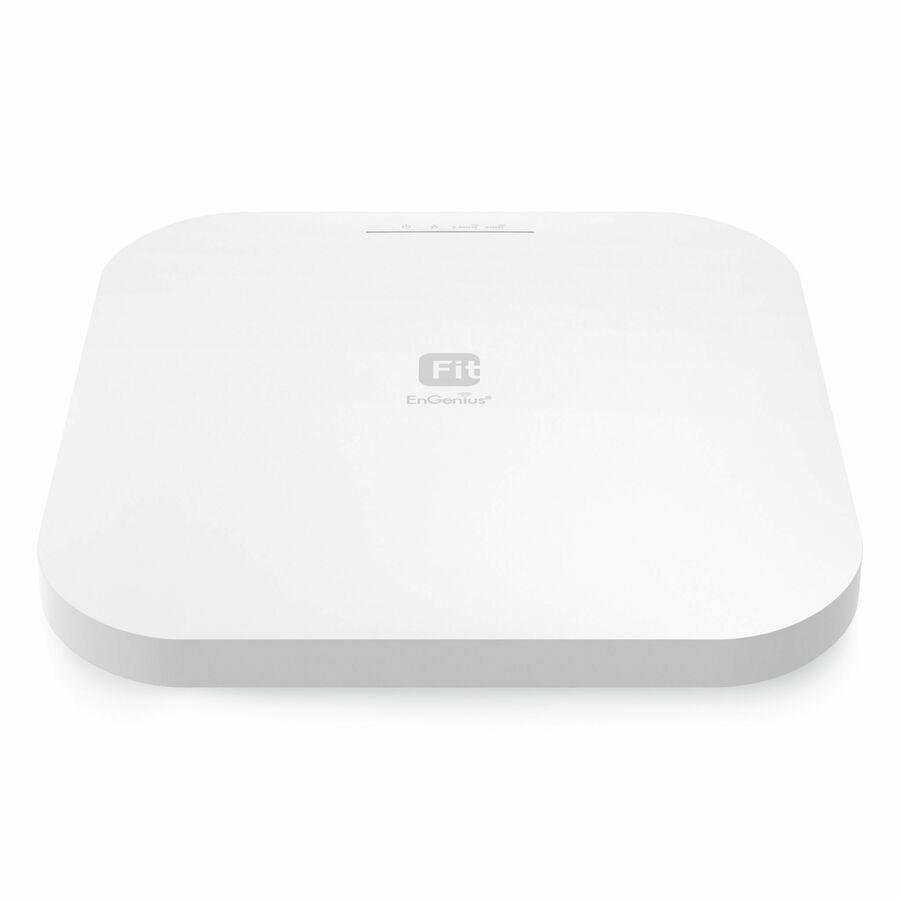

The EnGenius EWS276-Fit access point is Wi-Fi 6 4x4 access point that can be managed using the Fit mobile app, Fit on-premises controller, or Fit cloud management system. The EWS276-Fit supports up to 3.5 Gbps aggregate Wi-Fi speeds, one 2.5 GbE PoE+ port and eight 5 dBi internal antennas. This EnGenius AP has the ability to provide faster speeds, improved coverage, and 250 concurrent connections.
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 4x4 antenna
- Supports up to 2,400 Mbps in 5-GHz frequency band & 1,148 Mbps in 2.4-GHz frequency band
- 2.5 GbE realizes greater throughput and supports 802.3at & 48V PoE input for flexible installation over 100 meters (328 feet)
- Select mobile app, on-premises, cloud lite management options based on network architecture, administrative permissions.
- From anywhere cloud visibility and control
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring, and troubleshooting
- Real-time system metrics, analytics, and remote configurations
- No access point licensing or subscription fees
- Uplink and downlink of OFDMA improves transmission to APs and client devices.
- Target wake time for power-saving of client & IoT devices
- Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
- BSS coloring for tagging packets with a "color" to differentiate between adjacent basic service sets.
- Spatial reuse identifies color sets via BSS coloring & simultaneously transmits on the same channel, reducing transmission waiting time and contention.
| Brand | |
|---|---|
| Brand | EnGenius Technologies |
| Power & Battery | |
|---|---|
| Power Consumption | 17 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| Total Number of Antennas | 8 |
| Number of Internal Antennas | 8 |
| Wireless Transmission Speed | 3.46 Gbit/s |
| Frequency Band | 5 GHz |
| Network Band | Dual Band |
| Communication Protocols | SNMPv1/v2c/v3 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA2-PSK (AES) |
| General Features | |
|---|---|
| Indoor/Outdoor | Indoor |
| Manufacturer | EnGenius Technologies, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | Fit Wi-Fi 6 4x4 Indoor Wireless Access Point |
EnGenius Fit EWS276-Fit Dual Band IEEE 802.11 a/b/g/n/ac/ax/e 3.46 Gbit/s Wireless Access Point - Indoor - 2.40 GHz, 5 GHz - 8 x Internal Antenna(s) - Internal - MIMO Technology - 1 x Network (RJ-45) - 2.5 Gigabit Ethernet - 17 W - Ceiling Mountable, Wall Mountable - 1
