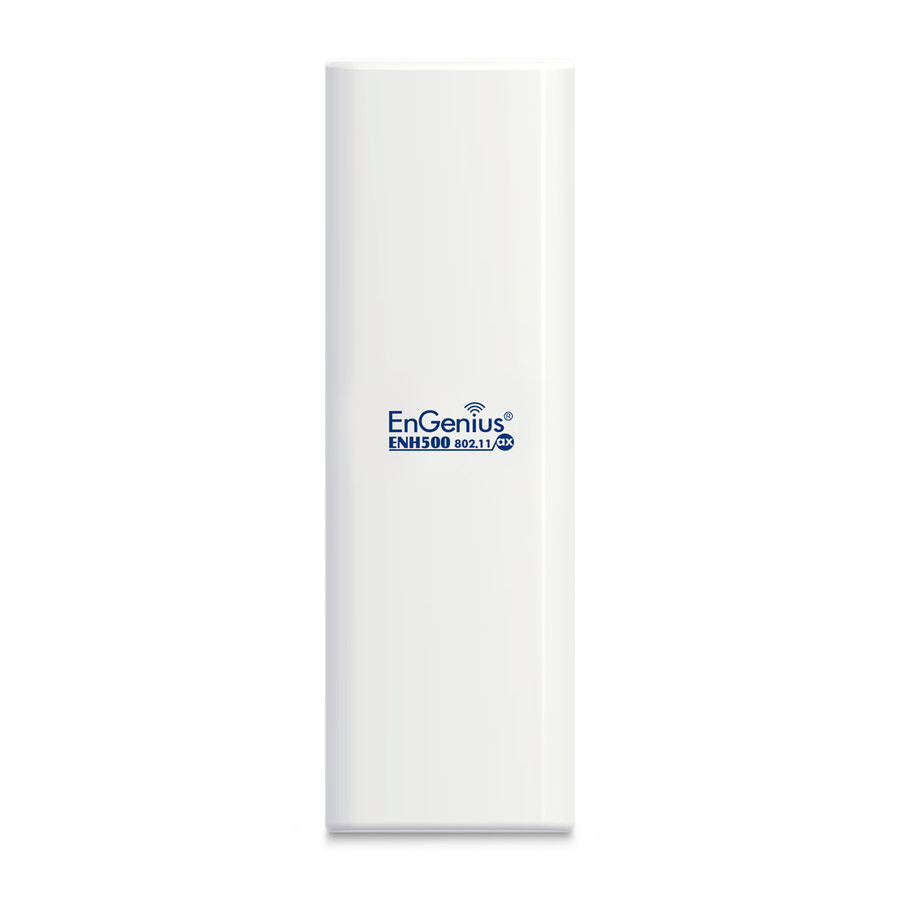

The EnGenius ENH500-AX 5GHz Wi-Fi 6 (802.11ax) 2x2 Outdoor Wireless Bridge features the newest generation of wireless technology delivering high density Wi-Fi performance transmissions between buildings and across large outdoor properties without the exorbitant cost of running fiber cable. With advantages over the older Wi-Fi standards, the Wi-Fi 6 bridge significantly increases throughput, supports greater efficiency, and accommodates 8k ultra HD video and heavy multi-application traffic with extended bandwidth over greater distances. The Wi-Fi 6 "invisible wire" bridge uses the latest in Wi-Fi technology to achieve longer ranges when paired with another Wi-Fi 6 bridge in a point-to-point/multiple point deployment.
- Wi-Fi 6 technology for high-performance and efficiency Wi-Fi in outdoor environments
- Beamforming optimizes antenna signal, reception & reliability for clients.
- 2x2 directional antennas to support up to 1,200 Mbps in 5-GHz.
- High 26 dBm transmit power extends Wi-Fi to yard or building-to-building.
- High gain 16 dBi Integrated directional antenna extend wireless networks up to 5 miles point-to-point.
- IP55-rated weatherproof & dustproof housing.
- Simple, Intuitive interface via EnWiFi app for local AP configuring & monitoring.
- Flexible Operation Modes: Access Point, Client Bridge, WDS Access Point, WDS Station
- Gigabit Ethernet PoE port supports flexible power options
| Brand | |
|---|---|
| Brand | EnGenius Technologies |
| Power & Battery | |
|---|---|
| Power Consumption | 12.50 W |
| Networking & Connectivity | |
|---|---|
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| Wireless Transmission Speed | 1.17 Gbit/s |
| Frequency Band | 2.40 GHz |
| Network Band | Dual Band |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Number of Network (RJ-45) Ports | 2 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| Antenna Form Factor | Internal |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA2-AES |
| General Features | |
|---|---|
| Indoor/Outdoor | Outdoor |
| Manufacturer | EnGenius Technologies, Inc |
| Compliance & Certification | |
|---|---|
| Ingress Protection (IP) Rating | IP55 |
EnGenius ENH500-AX Dual Band IEEE 802.11ax 1.17 Gbit/s Wireless Bridge - Outdoor - 5 GHz, 2.40 GHz - Internal - MIMO Technology - 2 x Network (RJ-45) - Gigabit Ethernet - 12.50 W - Pole-mountable, Wall Mountable - IP55 - 1
