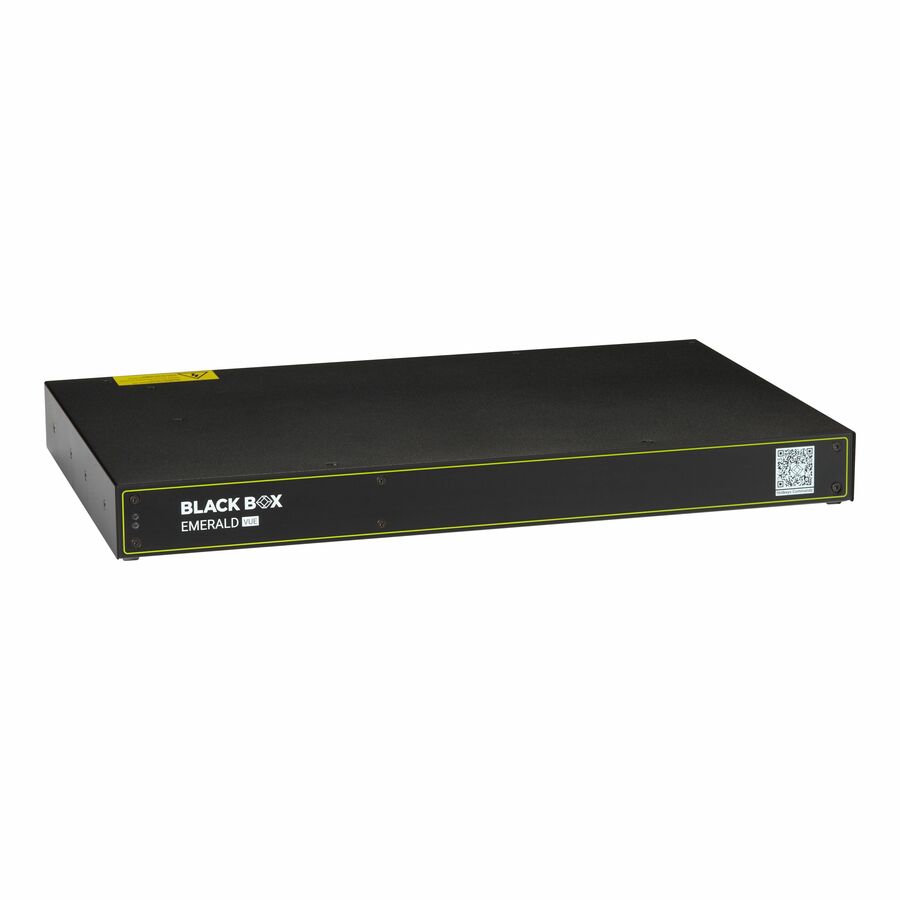

In crucial control room applications where people and equipment safety are at risk, the stakes are high. Control room personnel need a birds-eye view of system status at a moment's notice. Display up to four screens on one monitor at the same time with 4K resolution. This Multiviewer enables 4:2 single-head visualization.
You can arrange the individual windows freely and display them in different modes: Full-screen, Quad-screen (Quad), Picture-in-Picture (PiP), Preview, 2+2, and Free. Presets allow instant switching between the desired layouts.
Easy Switching
Switch between the DisplayPort video sources in real-time via keyboard commands.
Customized Audio
Tailor audio output to your specific needs. The KVM Multiviewer outputs embedded audio signals to a loudspeaker via a separate audio interface. Set it to output either the audio track of the currently active screen or combine the various audio signals so you can hear relevant signal tones at any time, regardless of the source.
Fail-Safe
In critical control room applications, you can't afford downtime. Built for 24/7 operation, the Multiviewer has redundant power supplies and extensive SNMP options for status monitoring (video, PSU, and switching status).
Space-Saving
Compact multiviewer fits where space is at a premium.
- Display four local sources on two 4K monitors simultaneously.
- Switch DisplayPort video sources in real-time via keyboard commands.
- Supports 4K60 DisplayPort input/output video signals.
- Combine multiple inputs on a single display, saving costs and maximizing valuable screen space.
- Tailor your output using various display modes to merge video content according to your preferences.
- Redundant power supply ensures fail-safe operation
| Brand | |
|---|---|
| Brand | Black Box Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | 4K |
| Power & Battery | |
|---|---|
| Plug/Connector Type | IEC 320-C14 |
| Input Voltage Range | 100-240 VAC |
| Input Current | 1.30 A |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 9 |
| USB Standard | USB 2.0 |
| USB 2.0 | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 6 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 4 |
| General Features | |
|---|---|
| Frequency | 60 Hz |
| Maximum Operating Distance | 16 ft |
| Manufacturer | Black Box Corporation |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Operating Temperature | 41°F (5°C) |
