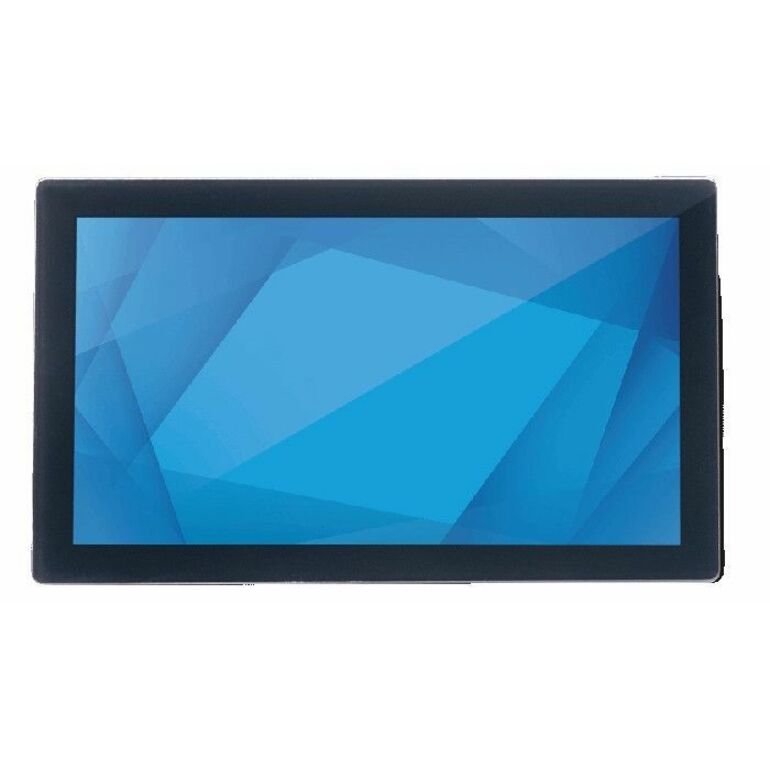

TouchPro Display Modules
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo's touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
How it Works
With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo's Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your TDM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
LCD
Resolution, Brightness, Temperature Range, Viewing Angle, Interface
PCAP Touch Screen
Film, Glass, Metal Mesh
Cover Glass
Custom sizes, shapes, edge treatments, holes and cut-outs, Materials (strengthened glass, safety glass, PMMA) Surface treatments, Border (colors, logos, icons, IR transmissive windows)
Display Enhancements
IR blockers, UV filters, Sunlight readable
Bonding
Perimeter Bond, Optical Bond, Tape Bond
Touch Controller
Wide variety of touch IC's and form factors, Performance tuning for water and contaminants, Suitable for thick cover glass or overlays, Other application specific tuning as requested
- Experience vivid colors and sharp contrast with wvga lcd touchscreen monitor for immersive viewing
- WVGA touchscreen highlights WVGA resolution up to 800 x 480 pixels for basic clarity in compact, portable touchscreen devices
- Projective Capacitive touchscreen supports two-finger multi-touch for smooth zooming, scrolling, and gesture-based navigation
- The 400 Nit brightness ensures clear, consistent visuals for smooth and accurate touch response
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Surface Treatment | Anti-glare |
| Screen Size Class | 7" |
| Viewable Screen Size | 7" |
| Multi-touch Screen | Yes |
| Touchscreen Type | Projected Capacitive |
| Maximum Resolution | 800 x 480 |
| Screen Mode | WVGA |
| Brightness | 400 Nit |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 160° |
| Active Display Area (H x V) | 6.04" x 3.64" |
| USB Ports | |
|---|---|
| USB | Yes |
| General Features | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Compliance & Certification | |
|---|---|
| Operating Temperature Range | -22°F (-30°C) to 185°F (85°C) |
