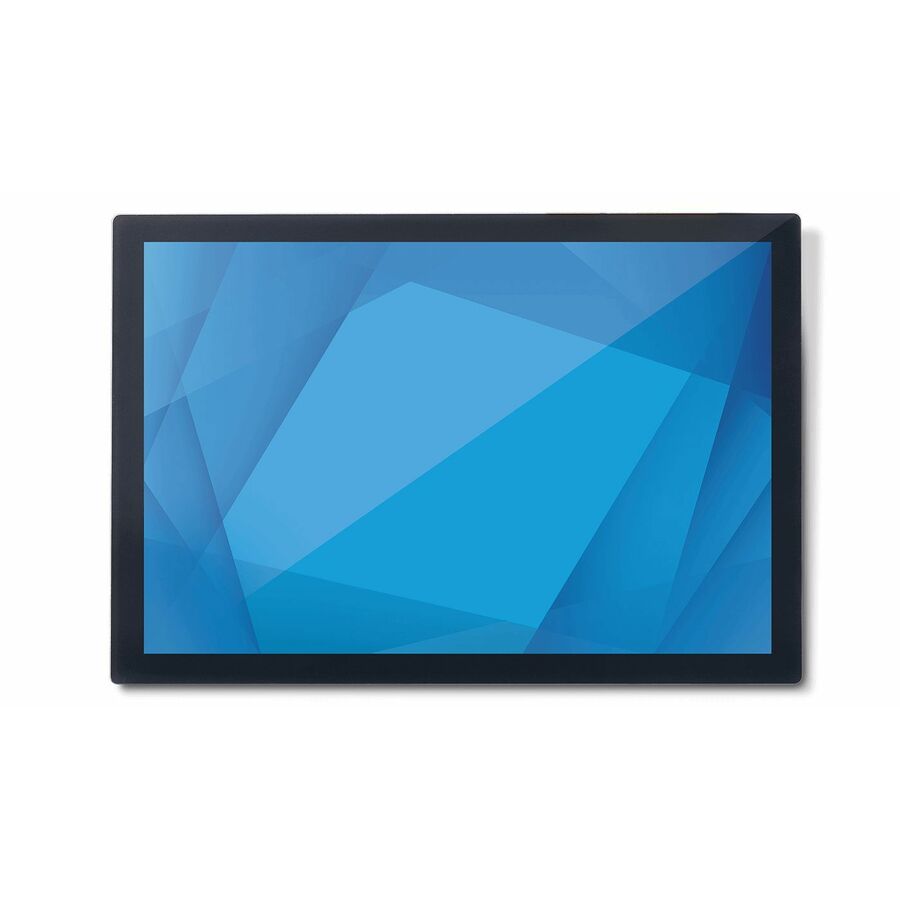

TouchPro Display Modules
Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.
The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.
Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo's touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.
How it Works
With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo's Touchscreen Display Modules deliver reliability that is ready for integration.
Customize Your TDM
From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.
- Experience vivid colors and sharp contrast with wxga lcd touchscreen monitor for immersive viewing
- WXGA touchscreen offers WXGA resolution up to 1280 x 800 pixels for crisp visuals and a widescreen format ideal for media and apps
- Captivating visuals with about 400 Nit brightness levels for clear and vivid touchscreen performance
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Screen Size Class | 10" |
| Viewable Screen Size | 10.1" |
| Multi-touch Screen | Yes |
| Touchscreen Type | TouchPro Projected Capacitive |
| Maximum Resolution | 1280 x 800 |
| Screen Mode | WXGA |
| Brightness | 400 Nit |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Active Display Area (H x V) | 8.57" x 5.36" |
| USB Ports | |
|---|---|
| USB | Yes |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 10 |
| General Features | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Compliance & Certification | |
|---|---|
| Operating Temperature Range | -4°F (-20°C) to 140°F (60°C) |
