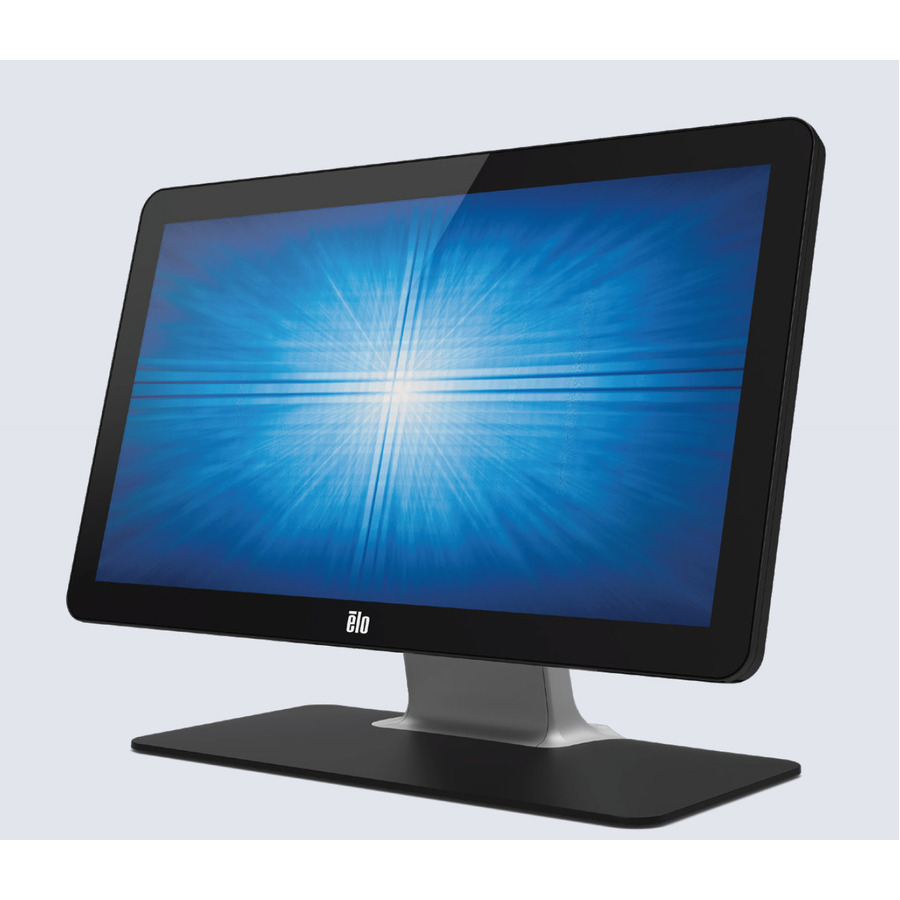

The Elo M-Series 2002L widescreen LED desktop touch monitor is a modern and stylish interactive solution for customer engagement and employee effectiveness. The sleek wide aspect ratio touchscreen features a full HD edge-to-edge glass display to showcase your content.
For environments where space is limited, the 2002L offers a low profile, with versatile mounting ideal for point-of-sale (POS), point-of-information (POI) and point-of-service applications within retail and hospitality environments. The multiple mount and stand options ensure installation flexibility and accommodate desktop use as well as wall- and pole-mount with standard VESA mount patterns.
The seamless zero-bezel 19.5" multi-touch display offers 11.5% larger screen area compared to the 1919L, with beautiful full HD resolution and HDMI input. Available with cutting-edge projected capacitive (PCAP) multi-touch capability supporting up to ten-touches simultaneously offers a tablet-like interactive experience. Built to withstand the rigors of continuous public use, the 2002L is retail-hardened and is well suited for high traffic venues.
Optional color coordinated retail accessories include a magnetic stripe reader (MSR), barcode scanner and near field communication (NFC) adapter for mobile payments and increased compatibility with the latest point of sale applications. The accessories are easily installed, providing an elegant, integrated solution that eliminates the need for external brackets or attachments.
- Experience vivid colors and sharp contrast with full hd lcd touchscreen monitor for immersive viewing
- The Full HD screen size with Full HD resolution (19201080) delivers sharp, detailed visuals without quality loss or downscaling
- Projective Capacitive touchscreen supports two-finger multi-touch for smooth zooming, scrolling, and gesture-based navigation
- LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
- Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
- The 3,000:1 contrast ratio ensures breathtaking color contrast for professional-grade touchscreen displays
- 16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- Features HDMI input for seamless connection with PCs, Blu-ray players, and advanced gaming consoles for high-quality visuals
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| GPU / Graphics | |
|---|---|
| HDCP Supported | Yes |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 3 |
| Contrast Ratio | 000:1 , 3 |
| Screen Size Class | 20" |
| Viewable Screen Size | 19.5" |
| Multi-touch Screen | Yes |
| Touchscreen Type | Projected Capacitive |
| Backlight Technology | LED |
| Horizontal Frequency | 31.50 kHz to 80 kHz |
| Vertical Frequency | 50 Hz to 60 Hz |
| Curved Screen | No |
| Maximum Resolution | 1920 x 1080 |
| Screen Mode | Full HD |
| Aspect Ratio | 16:9 |
| Panel Technology | Thin Film Transistor (TFT) |
| Brightness | 250 Nit |
| Response Time | 20 ms |
| Maximum Refresh Rate | 60 Hz |
| Color Supported | 16.7 Million Colors |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Power & Battery | |
|---|---|
| Input Voltage Range | 100V to 240V |
| Standby Power Consumption | 330 mW |
| Off-Mode Power Consumption | 240 mW |
| Energy Consumption per Year | 27 kWh |
| Operating Power Consumption | 18.40 W |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Audio | |
|---|---|
| Speaker Output Power | 4 W |
| Speakers | Yes |
| Number of Speakers | 2 |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 10 |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 11.68 lb |
| Height with Stand | 13.87" |
| Depth with Stand | 7.61" |
| Width with Stand | 19.22" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Desk Mountable |
| Appearance | |
|---|---|
| Placement | Tabletop |
| General Features | |
|---|---|
| Mean Time Between Failures (M | 5.7 Year |
| Manufacturer | Elo Touch Solutions, Inc |
| Video Ports | |
|---|---|
| VGA | Yes |
| Miscellaneous | |
|---|---|
| Product Name | M-Series 2002L 20-inch LED Touch Monitor |
