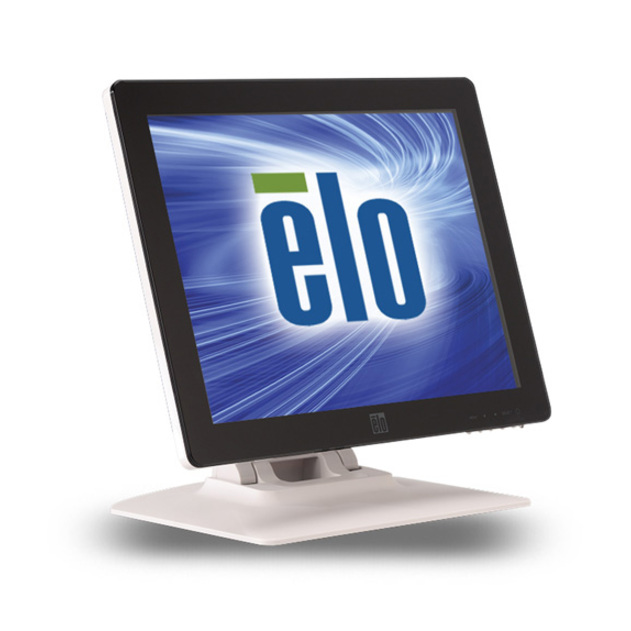

The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1523L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
- Experience vivid colors and sharp contrast with xga lcd touchscreen monitor for immersive viewing
- XGA touchscreen supports XGA resolution up to 1024 x 768 pixels for dependable image quality in standard applications
- Multi-touch activation with IntelliTouch Pro Projected Capacitive technology allows input from multiple fingers for intuitive gestures
- LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
- Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
- The 700:1 contrast ratio offers superior shading for realistic images and smooth, responsive touch navigation
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Viewable Screen Size | 15" |
| Multi-touch Screen | Yes |
| Touchscreen Type | IntelliTouch Pro Projected Capacitive |
| Backlight Technology | LED |
| Maximum Resolution | 1024 x 768 |
| Screen Mode | XGA |
| Aspect Ratio | 4:3 |
| Brightness | 250 Nit |
| Response Time | 25 ms |
| Color Supported | 16.2 Million Colors |
| Contrast Ratio | 700:1 |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 12 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Audio | |
|---|---|
| Speakers | Yes |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 9.80 lb |
| Height with Stand | 7.84" |
| Depth with Stand | 12.54" |
| Width with Stand | 14.10" |
| VESA Mount Compatible | Yes |
| Mount Type | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Video Ports | |
|---|---|
| VGA | Yes |
| DVI | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
