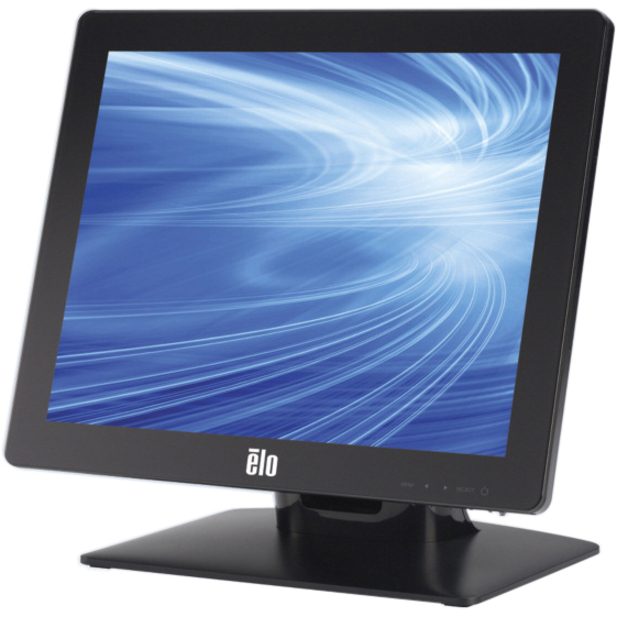

The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
- The XGA-2 lcd touchscreen monitor is perfect for retail, hospitality, and point-of-sale applications
- XGA-2 touchscreen features XGA-2 resolution up to 1024 x 768 pixels for consistent clarity and reliable performance
- 5-wire Resistive technology works with almost any objectstylus, gloved hand, pen, or fingersfor versatile touch input
- LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
- The 250 Nit brightness ensures clear, consistent visuals for smooth and accurate touch response
- The 700:1 contrast ratio offers superior shading for realistic images and smooth, responsive touch navigation
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Adjustable Display Angle | Yes |
| Screen Size Class | 15" |
| Viewable Screen Size | 15" |
| Touchscreen | Yes |
| Touchscreen Type | 5-wire Resistive |
| Backlight Technology | LED |
| Horizontal Frequency | 60 kHz |
| Maximum Resolution | 1024 x 768 |
| Screen Mode | XGA-2 |
| Aspect Ratio | 4:3 |
| Brightness | 250 Nit |
| Response Time | 16 ms |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.2 Million Colors |
| Horizontal Viewing Angle | 160° |
| Vertical Viewing Angle | 140° |
| Contrast Ratio | 700:1 |
| Screen Surface | Anti-glare |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Standby Power Consumption | 1.70 W |
| Off-Mode Power Consumption | 1.30 W |
| Operating Power Consumption | 12 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Height with Stand | 12.50" |
| Depth with Stand | 7.80" |
| Width with Stand | 14.10" |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Pole Mount |
| General Features | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 1517L Rev B 15-inch Multifunction Desktop |
