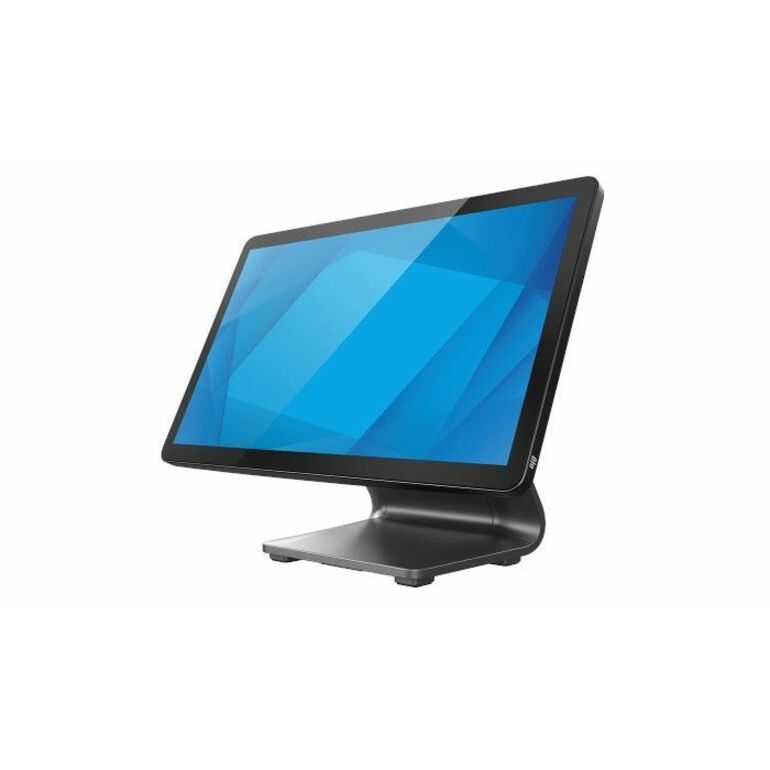

1304L 13-inch Touchscreen Monitor
The 1304L touch monitor delivers a stunning design, enhanced durability, increased touch accuracy and brilliant display clarity. With state-of-the-art optical bonding and IP54-sealed design, the 13" touch monitor offers a feature-rich platform and the versatility to extend across a diverse range of applications from point-of-sale, self-service and kitchen display systems to warehouse automation, access control and HMI.
Create the perfect payment stack with the 13" touchscreen.
Easily pair the 13-inch touchscreen monitor with one of Elo's integrated payment devices - from Elo Pay mobile computers to the Elo Pay 7" , the 1304L offers the perfect compact touch display with the connectivity you need at the point of sale.
State of the art optical viewing.
Designed with high quality optical bonding, anti- glare coverglass and low-blue light settings - the 1304L 13-inch touch�screen monitor brings the best-in-class solution for viewing comfort and clarity.
Secure yourcables into place.
Never lose your port covers and screws with the security of the captive design. With a port cover that locks into place, cables are less prone to becoming disconnected, resulting in minimal disruptions to the device.
Connect accessories to the edge.
Elo Edge Connect™ offers an expansive lineup of accessories that seamlessly attach to the edge of the display including - EMVs, barcode scanners, status lights, cameras, RFID, MSR, fingerprint scanner and more.
Navigate the OSD directly on the touchscreen.
The on-screen display (OSD) controls are now directly on the touchscreen - making navigation easier while still offering OSD lock security.
Expand the possibilities with touch through.
Elo's TouchPro PCAP monitors feature touch through capability, supporting use with gloves and additional layers of films and filters to meet specific industry requirements.
- Experience vivid colors and sharp contrast with full hd lcd touchscreen monitor for immersive viewing
- The Full HD screen size with Full HD resolution (19201080) delivers sharp, detailed visuals without quality loss or downscaling
- Projective Capacitive technology allows touch with bare fingers or thin gloves for flexibility in medical and industrial use
- The 270 Nit brightness ensures clear, consistent visuals for smooth and accurate touch response
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- HDMI interface delivers premium audio and video quality with single-cable convenience for clutter-free connectivity
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Brightness (Peak) | 300 Nit |
| On Screen Display (OSD) Contr | Contrast |
| Screen Size Class | 13" |
| Viewable Screen Size | 13.3" |
| Multi-touch Screen | Yes |
| Touchscreen Type | Projected Capacitive |
| Vertical Frequency | 60 Hz |
| Maximum Resolution | 1920 x 1080 |
| Screen Mode | Full HD |
| Aspect Ratio | 16:9 |
| Panel Technology | Thin Film Transistor (TFT) |
| Brightness | 270 Nit |
| Response Time | 27 ms |
| Maximum Refresh Rate | 60 Hz |
| Color Supported | 16.2 Million Colors |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Native Contrast Ratio | 600:1 |
| Active Display Area (H x V) | 11.50" x 6.50" |
| USB Ports | |
|---|---|
| Number of Micro USB Ports | 4 |
| Total Number of USB Type-C Po | 1 |
| USB | Yes |
| Number of USB Ports | 6 |
| USB Type-C | Yes |
| USB Type-C (Power Delivery) | 18 W |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Total Number of HDMI Ports | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 1 |
| Audio | |
|---|---|
| Speakers | Yes |
| Number of Speakers | 2 |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 10 |
| Size / Dimensions | |
|---|---|
| Weight with Stand (Approximat | 5.28 lb |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Appearance | |
|---|---|
| Placement | Tabletop |
| General Features | |
|---|---|
| Built-in Devices | USB Hub |
| Manufacturer | Elo Touch Solutions, Inc |
| Compliance & Certification | |
|---|---|
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP54 |
| Impact Protection (IK) Rating | IK08 |
| Miscellaneous | |
|---|---|
| Product Name | 1304L Widescreen Touchscreen LCD Monitor |
