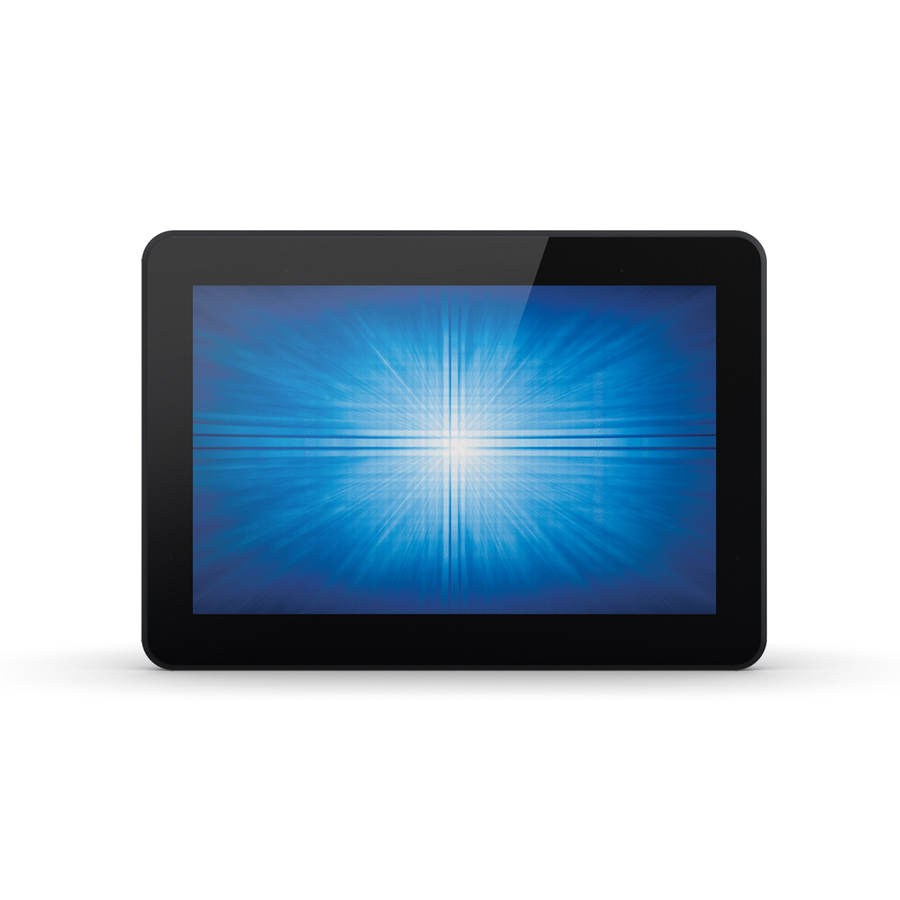

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- Display Port and VGA video interfaces
- The open-frame lcd touchscreen monitor is ideal for clubhouse gaming, entertainment, and self-service kiosks with reliable touchscreen performance
- WXGA touchscreen offers WXGA resolution up to 1280 x 800 pixels for crisp visuals and a widescreen format ideal for media and apps
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- Captivating visuals with about 350 Nit brightness levels for clear and vivid touchscreen performance
- The 800:1 contrast ratio provides striking clarity for vibrant visuals in creative and interactive workflows
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
- HDMI connectivity supports HD devices like gaming consoles, laptops, and cameras for an ultimate high-definition experience
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Color Supported | 000 Colors , 262 |
| Screen Size Class | 10" |
| Viewable Screen Size | 10.1" |
| Touchscreen | Yes |
| Multi-touch Screen | Yes |
| Touchscreen Type | TouchPro Projected Capacitive |
| Number of Simultaneous Touchpoints | 10 |
| Backlight Technology | LED |
| Horizontal Frequency | 30 kHz to 60 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Curved Screen | No |
| Maximum Resolution | 1280 x 800 |
| Screen Mode | WXGA |
| Aspect Ratio | 16:10 |
| Panel Technology | Thin Film Transistor (TFT) |
| Brightness | 350 Nit |
| Response Time | 25 ms |
| Maximum Refresh Rate | 75 Hz |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Contrast Ratio | 800:1 |
| Power & Battery | |
|---|---|
| Standby Power Consumption | 700 mW |
| Off-Mode Power Consumption | 500 mW |
| Energy Consumption per Year | 10 kWh |
| Operating Power Consumption | 25 W |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| DisplayPort Version | 1.1a |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 10 |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Flush Mount |
| General Features | |
|---|---|
| Mean Time Between Failures (M | 5.7 Year |
| Manufacturer | Elo Touch Solutions, Inc |
| Video Ports | |
|---|---|
| VGA | Yes |
| Misc Ports | |
|---|---|
| Interface | USB |
| Compliance & Certification | |
|---|---|
| TAA Compliant | No |
| Environmentally Friendly | Yes |
| Brand | Elo Touch Solutions, Inc |
| UPC/GTIN | 815335025778 |
| MPN | E321195 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
