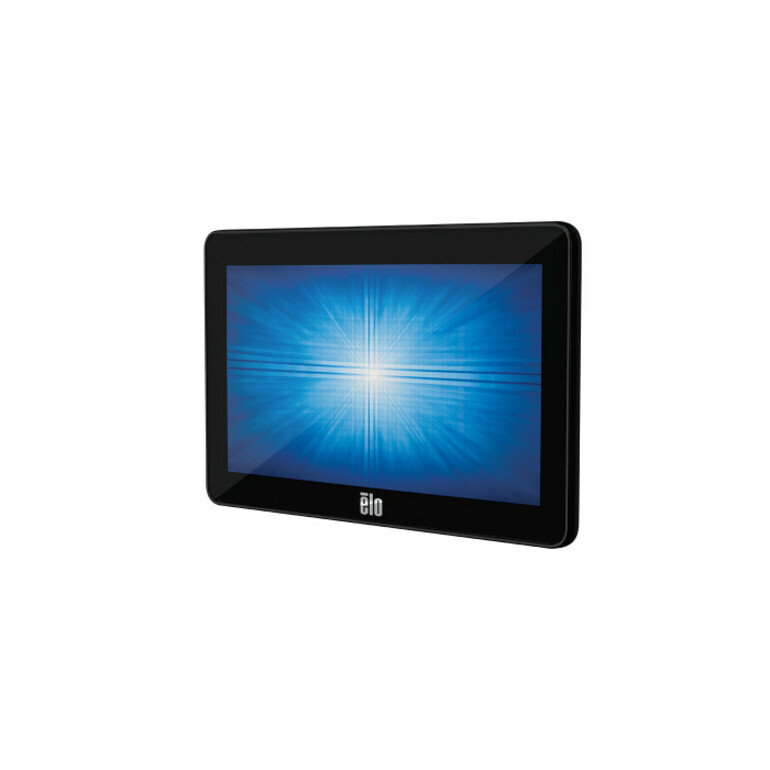

Elo's 0702L Touchscreen Monitor
The Elo 0702L 7-inch touchscreen monitor offers the same seamless design that spans the entire Elo 02-Series lineup. With a form factor only half an inch thin and a design tailored for ease of integration, the 0702L thrives in customer-facing installations in point-of-sale, brand-loyalty, point-of- information, signage and hospitality applications. With a slim footprint, the 0702L is also well-suited for industrial kitchen equipment controllers and kitchen display systems.
Single-Cable Connection
Using DisplayLink technology, the 0702L provides a single-cable solution that combines power, video and touch signals into one USB connection. By reducing the number of cables from 3 to 1, installation is a breeze, and you never have to worry about a power adapter again.
DisplayLink technology supports Windows, Android and Linux operating systems.
Mount With Flexibility
Customers demand a seamless shopping experience from the moment they enter the store through check-out. From stands and pole mounts to shelf mounts, wall mounts and 3rd-party VESA mounts, the touchscreens can be integrated with ease.
Brilliant Displays from 7 to 27-inches
The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution and light transmission for accurate touch response and vivid images. Capable of handling up to 10 simultaneous touches, the 02-Series touchscreen monitors provide an enhanced tablet-like experience.
EloCareSM - We Have Your Back
When a technology outage happens, retailers, restaurants and business operators want to know the right person to call, right away. EloCare offers services you can count on in case the unexpected happens.
- Experience vivid colors and sharp contrast with wvga lcd touchscreen monitor for immersive viewing
- WVGA touchscreen highlights WVGA resolution up to 800 x 480 pixels for basic clarity in compact, portable touchscreen devices
- LED backlight technology reduces power use and hazardous materials for eco-friendly performance
- View content easily in bright environments with 500 Nit brightness for uninterrupted touch control
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
| Brand | |
|---|---|
| Brand | Elo Touch Solutions |
| Screen / Display | |
|---|---|
| Screen Size Class | 7" |
| Viewable Screen Size | 7" |
| Multi-touch Screen | Yes |
| Touchscreen Type | TouchPro Projected Capacitive |
| Backlight Technology | LED |
| Horizontal Frequency | 31.50 kHz |
| Vertical Frequency | 60 Hz |
| Maximum Resolution | 800 x 480 |
| Screen Mode | WVGA |
| Aspect Ratio | 5:3 |
| Panel Technology | Thin Film Transistor (TFT) |
| Brightness | 500 Nit |
| Response Time | 25 ms |
| Color Supported | 16.2 Million Colors |
| Horizontal Viewing Angle | 150° |
| Vertical Viewing Angle | 120° |
| Native Contrast Ratio | 500:1 |
| Response Time Details | 25 ms Typical |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 3.70 W |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Input Devices | |
|---|---|
| Number of Simultaneous Touchp | 10 |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Mount Type | Wall Mountable |
| General Features | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
