The Tripod B Series is a light-weight portable projection screen of the traditional tripod design. It is a dependable design that is easy to carry for portable small or large venue presentations. Its adjustable telescopic support allows variable height settings to aid in formatting the screen into a variety of aspect ratios. The MaxWhite® B front projection material has a 1.0 unity gain with a wide viewing angle.
Below are examples of aspect ratios that can be achieved by adjusting the height position on a T113SB.
60" height x 80" wide = 100" diagonal in 4:3
50" height x 80" wide = 94" diagonal in 16:10
45" height x 80" wide = 92" diagonal in 16:9
34" height x 80" wide = 87" diagonal in 2.35:1
Screen Material
- MaxWhite® B 1.0 Gain matte white front projection material
- Black backing eliminates light penetration for enhanced brightness
- Wide 180° viewing angle diffusion uniformity maintains projector light all across the surface
- Not compatible with Ultra/Short-throw Projectors
- Standard left and right black masking borders enhances perceived contrast

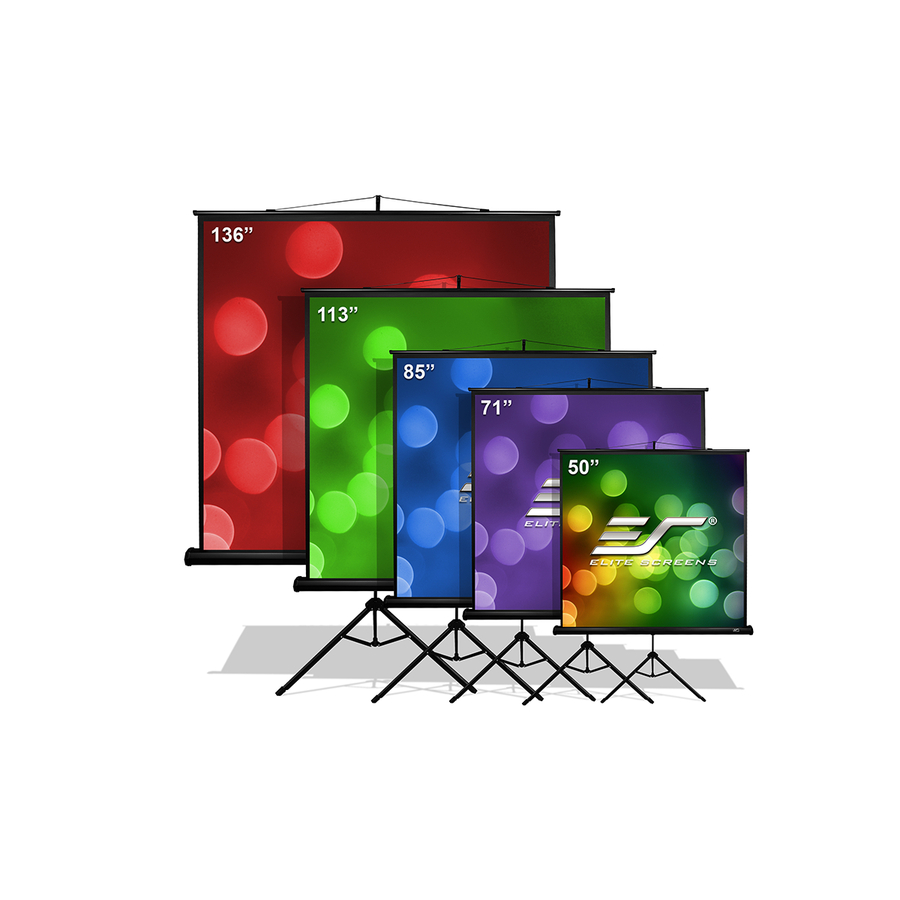

- Available in the following diagonal sizes:
- 50" , 71" , 85" , 113" and 136" in 1:1 format
Design and Operation
- Adjustment lock secures telescopic vertical support positions
- Latch locking system allows multiple height adjustment for various aspect ratio settings
- Keystone eliminator
- Integrated handle allows screen to be easily carried
- Heavy-duty metal casing withstands rough handling while in transit
- Optional canvas bag available for added protection during transit (excludes 50" model)
Quality and Reliability
- GREENGUARD® and GREENGUARD® Gold Certified | UL 2818
- 2-Year / 3-Year ENR-G Manufacturer's Warranty by Elite Screens, an ISO9001 manufacturer since 2004
- Lifetime Tech Support by Elite's Professional Service Team through Email, Web Chat or Toll Free Phone Call
