- Extends system range
- Switchable 3 dB and 10 dB of active gain
- Mounts on standard threaded microphone stand

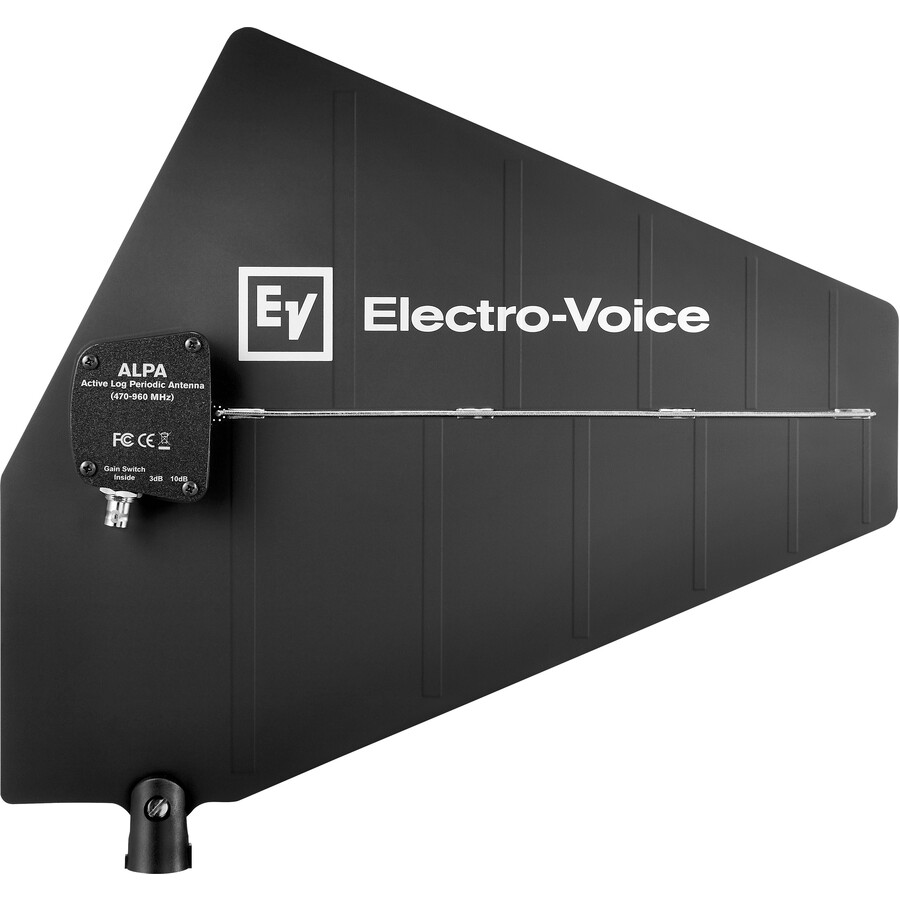

The ALPA is an active directional antenna with switchable 3 dB and 10 dB of amplified gain, which increases the desired RF signal while rejecting unwanted RF signals. ALPA mounts on a standard threaded microphone stand for easy placement. Intended to extend system range, ALPA should be used in conjunction with high-quality, low-loss coax cables such as items from the Electro-Voice CXU grade cables, which are available in various lengths. RF gain at the antenna can be increased by placing an RE3- ACC-RFAMP RF booster in line using short coax.
- Designed to operate at 470 MHz to 960 MHz frequency
- Operates at 10 dB gain
- With its directional feature, this antenna only picks up signals from a given direction, hence reducing interference levels
- Mountable to poles for easy installation
| Brand | |
|---|---|
| Brand | The Bosch Group |
| Networking & Connectivity | |
|---|---|
| Antenna Gain | 10 dB |
| Frequency Band Type | UHF |
| Audio | |
|---|---|
| Directivity | Directional |
| Size / Dimensions | |
|---|---|
| Form Factor | Pole |
| General Features | |
|---|---|
| Operating Frequency Range | 470 MHz to 960 MHz |
| Manufacturer | The Bosch Group |
| Cables | |
|---|---|
| Connector Type | BNC |
