Features | USB-C Docking Station Turns Your Handheld Gaming Console into a Desktop Gaming PC
This USB-C dock with PD charging expands the potential of your Steam Deck or ASUS ROG Ally. Just insert your game console into the docking station's cradle, and connect the dock's built-in USB-C cable to your handheld's USB-C port. You can now experience handheld gaming on a large 4K screen, connect a keyboard and mouse, transfer data to external storage, join a wired Gigabit Ethernet network and charge your gaming console to maximum power.
Transmits 4K Video with HDR and 4:4:4 Color
The HDMI port supports Ultra HD 4K resolutions up to 3840 x 2160 at 60 Hz with 36-bit Deep Color for gameplay on a large monitor. The U442-DOCKSD-1 supports HDR (High Dynamic Range), providing a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. This dock also supports uncompressed 4:4:4 chroma subsampling for top-level PC gaming.
PD Charging Port Supports up to 100W for Rapid Syncing and Charging
The Power Delivery port provides power output up to 20V 5A (100W), which is sufficient for fast-charging your Steam Deck or ROG Ally when not in use. Connect a user-provided USB-C charging cable (sold separately) between the USB-C PD charging port and a compatible USB-C PD charger.
USB Ports Connect Keyboards, Thumb Drives and Other Peripherals
One USB-C and one USB-A hub port accept USB peripherals, such as external storage drives, mice and keyboards. They support USB 3.2 Gen 1 data transfer rates up to 5 Gbps (10 times faster than USB 2.0) and are backward compatible with USB 2.0 and USB 1.1 devices.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast lag-free gaming.
Ready to Use Right Out of the Package
The plug-and-play USB-C dock is specifically designed for use with the Smart Deck or ROG Ally. It requires no extra software to be downloaded and installed.
- Connects Steam Deck or ROG Ally to a large-screen display for more immersive gaming
- HDMI port supports 4K @ 60 Hz with HDR, 4:4:4 chroma and 36-bit Deep Color
- USB-A and USB-C ports reach speeds up to 5 Gbps for storage drives or keyboard/mouse
- RJ45 port allows wired access to a Gigabit Ethernet network for online gaming
- Power Delivery port supports 20V 5A (100W) power output for charging game device
- 3-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 4K |
| Supported Resolutions | 3840 x 2160 |
| Power & Battery | |
|---|---|
| Charging Capability | Yes |
| Power Source Type | Power Supply |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 1 Type- | 2 |
| USB Power Delivery | 100W |
| Total Number of USB Ports | 4 |
| USB Type-C | Yes |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 2 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 640 MB/s |
| Manufacturer | Eaton Corporation |
| Brand Compatibility | Asus |
| Misc Ports | |
|---|---|
| Host Interface | USB Type C |
| Cables | |
|---|---|
| Cable Length | 6.69" |
| Miscellaneous | |
|---|---|

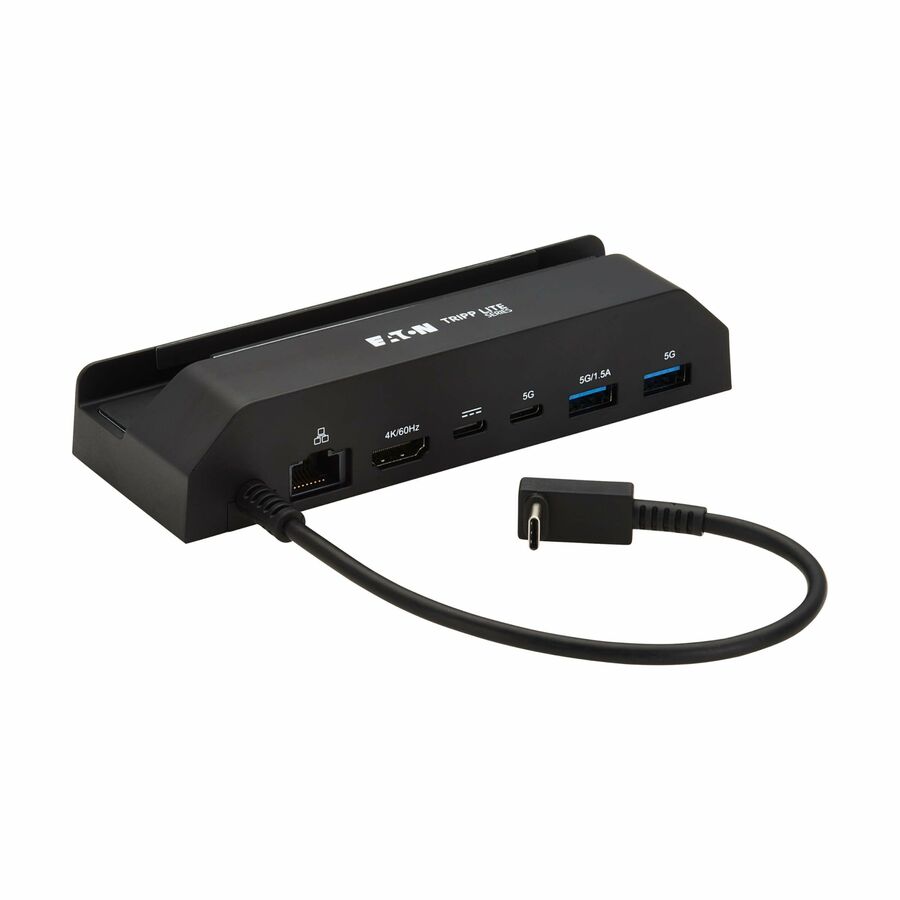

| Product Name | U442-DOCKSD-1 Docking Station |
