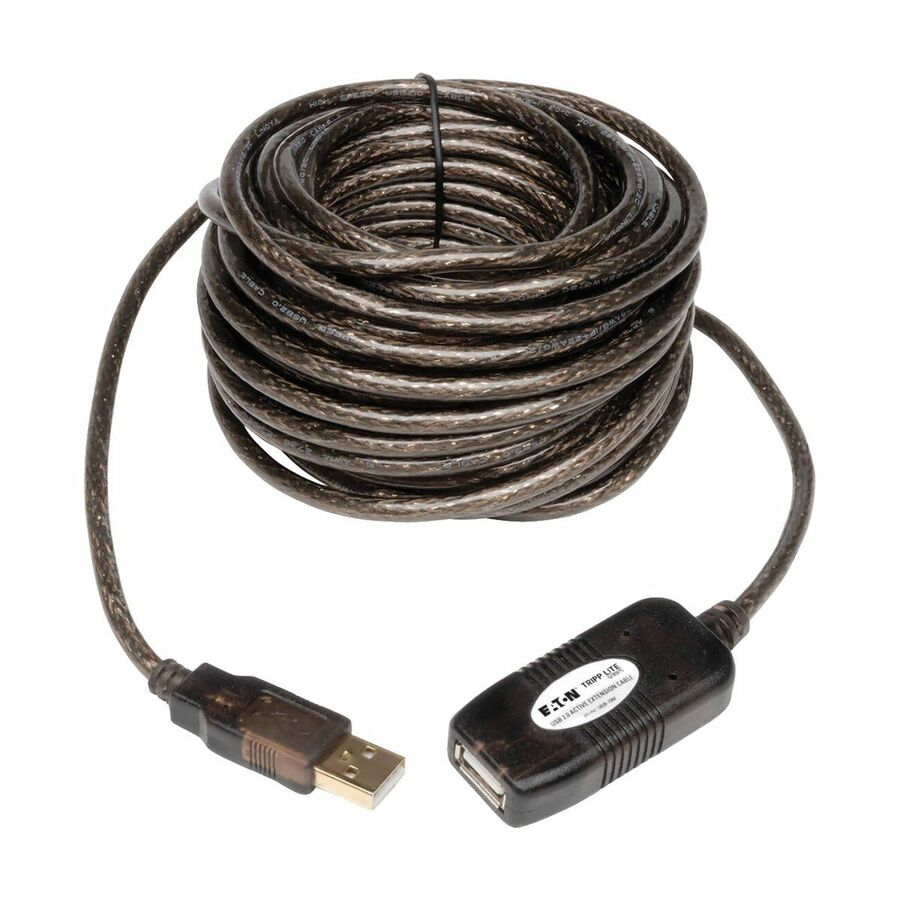

Eaton Tripp Lite Series USB 2.0 Active Extension Repeater Cable (A M/F), 16 ft. (4.88 m)

$ 24.99 $ 24.99
$ 24.99

$ 24.99 / Units
  • Brand
  • Connector on Second End Detai
  • Shipping Height
  • Shipping Width
  • Shipping Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Conductor
  • Features
  • Cable Length
  • Cable Type
  • Cable Characteristic
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Contact Plating
  • Jacket Color
  • Shielding
  • Shielding Material
  • American Wire Gauge
  • Product Color
  • Color Family
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Compatibility
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

Tripp Lite's 16-ft. USB 2.0 active extension cable is a bus powered extension cable that can be used to increase the length of a device cable without the worry of signal loss and potential performance problems. USB limits a cable's length to 16ft. Any length above 16 feet requires the use of an active cable such as this one. This cable has a signal booster built in. The overall cable length can be extended up to 80ft by daisy chaining up to 5 of these active cables. The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016. Use a standard 6' 10' or 15' USB cable to reach the desired distance.

More from the Manufacturer

  • The U026-016 provides up to 150mA of power to the connected device. If your device requires more than 150mA of power, it will either need to have its own power supply; or, to be plugged into a powered USB 2.0 hub (such as U222-004-R) that is connected to the U026-016.
  • Daisychain up to 5 cables to extend the signal up to 80-ft. (24.38 m) passed the 16-ft. (4.88 m) distance limitation
  • Bus powered signal booster
  • Works together with standard USB 2.0 cables
  • Extend a USB 2.0 signal passed the 16-ft. (4.88 m) distance limitation
Brand
Brand Eaton Corporation
Size / Dimensions
Shipping Height 1"
Shipping Width 4.50"
Shipping Weight (Approximate) 6.40 oz
General Features
Manufacturer Eaton Corporation
Cables
Conductor Copper
Cable Length 16 ft
Cable Type USB
Cable Characteristic Extension Cable
Connector Type on First End USB 2.0 Type A - Male
Connector on First End Details 1 x USB 2.0 Type A - Male
Connector Type on Second End USB 2.0 Type A - Female
Contact Plating Gold
Jacket Color Black
Shielding Yes
Shielding Material Aluminum Mylar Foil
American Wire Gauge 28/22 AWG
Compliance & Certification
Environmentally Friendly Yes
Miscellaneous
Product Name USB 2.0 Active Extension Repeater Cable (A M/F) , 16 ft. (4.88 m)
