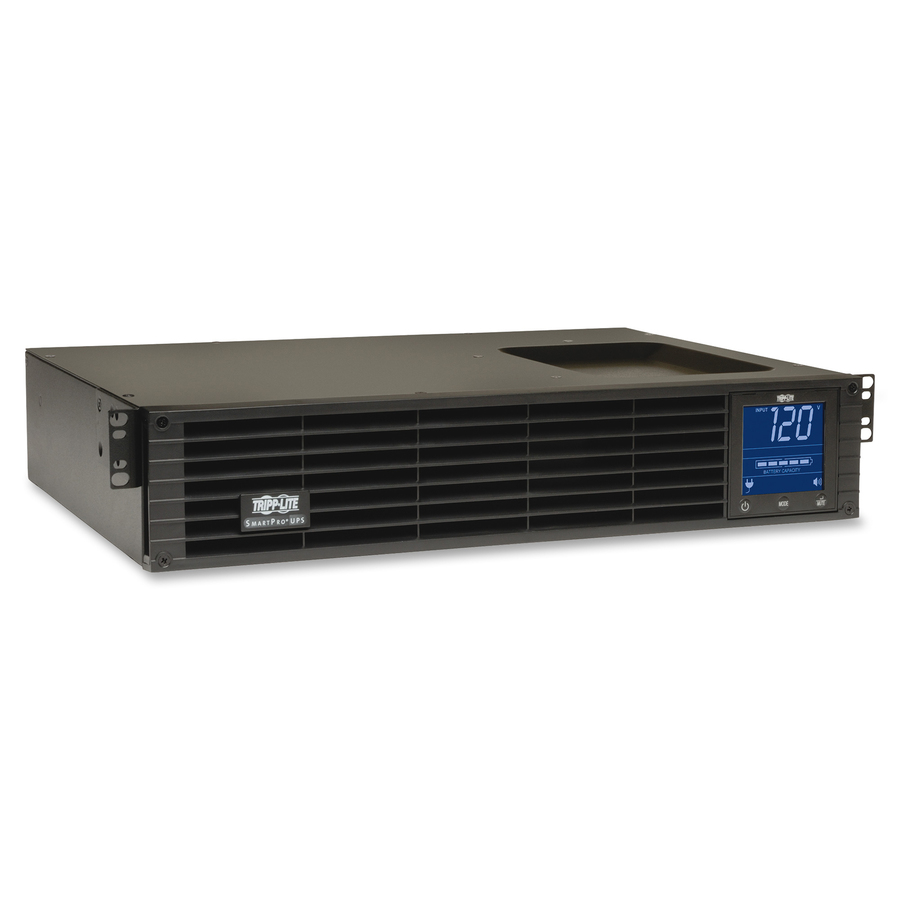

Line-interactive, uninterruptible power supply (UPS) with enhanced LCD interface offers network-grade power protection for your critical server, network and telecommunications equipment. UPS with built-in, auto-voltage regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of a power failure. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption. 95 percent line-mode efficiency offers reduced heat emissions and operating costs. USB and RS-232 ports work with PowerAlert software to communicate detailed UPS status and site power conditions. Communication ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions.
- 15.6 min. runtime at half load; 6.4 min. at full load
- Interactive LCD monitoring screen
- 6 NEMA 5-15R outlets
- Monitoring of power conditions via POWERALERT12
- Corrects under- and overvoltages from 83V to 147V
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Battery Management | user-replaceable |
| Circuit Breaker | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 9.20 A |
| Load Capacity (Watt) | 700 W |
| Load Capacity (VA) | 1000 VA |
| Backup/Run Time (Full Load) | 6.40 Minute |
| Backup/Run Time (Half Load) | 15.60 Minute |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Remote Shutdown |
| Protection Type | EMI / RFI |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 35.75 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 9.84 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Recycled | No |
| Sound Emission | 45 dB |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
