2kVA 1.8kW 120V Battery Backup Protects Equipment Against Damage, Downtime and Data Loss
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU2200RTXLCD2UTAA provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in the case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP72RT2UTAA, sold separately).
Optional Network Management Card Allows 24/7 Remote Access
The WEBCARDLXE network interface (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.Note: The SU2200RTXLCD2UTAA is not compatible with WEBCARDLX.
NEMA Outlets Protect Your Connected Components
One L5-20R and six 5-20R managed outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets are split evenly into two switchable load banks that let you reboot select components or shed non-critical loads in order to extend runtime for critical loads during an outage. A cooling fan helps protect equipment from overheating.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The two-line front-panel LCD features 10 selectable screens that allow quick access to a wide range of detailed UPS and site power information. LEDs show UPS status: a green light means utility power is on, an orange light means the UPS is in battery or bypass mode and a red light indicates an active alarm or fault. The control panel rotates to accommodate both rack-mount and tower configurations.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Optional WEBCARDLXE network interface enables 24/7 complete and remote control
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | Green Energy-Saving |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 1 x NEMA L5-20R |
| Receptacle Type | NEMA L5-20R |
| Plug/Connector Type | NEMA 5-20P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 127 V AC |
| Input Current | 16 A |
| Efficiency Detail | 96.8% (Eco Mode) |
| Load Capacity (Watt) | 1800 W |
| Load Capacity (VA) | 2000 VA |
| Input Power Factor | 0.99 |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.9 |
| DC System Voltage | 72 V DC |
| Backup/Run Time (Full Load) | 7.70 Minute |
| Backup/Run Time (Half Load) | 20.20 Minute |
| Transfer Time | 0 ns |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 190 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Remote Shutdown |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 285.45 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 10000 ft |
| TAA Compliant | Yes |
| Energy Star | Yes |
| Sound Emission | 47 dB |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $250000 Lifetime |
| Miscellaneous | |
|---|---|

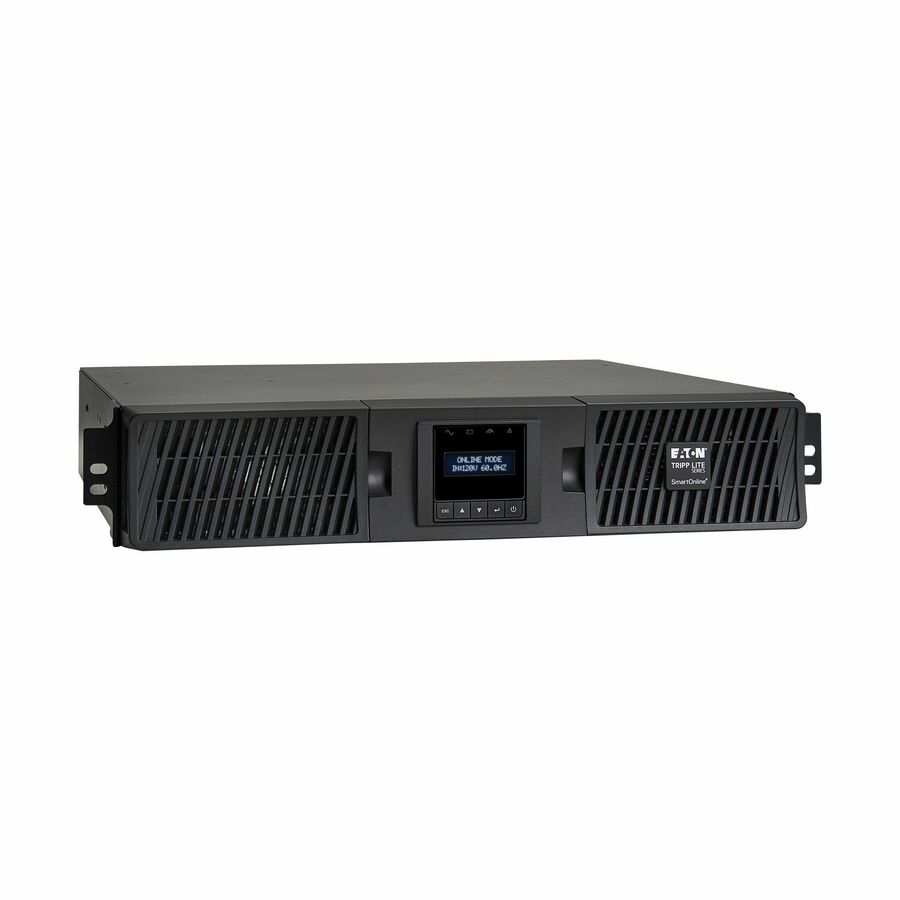

| Product Name | SmartOnline SU2200RTXLCD2UTAA 2000VA Rack/tower UPS |
