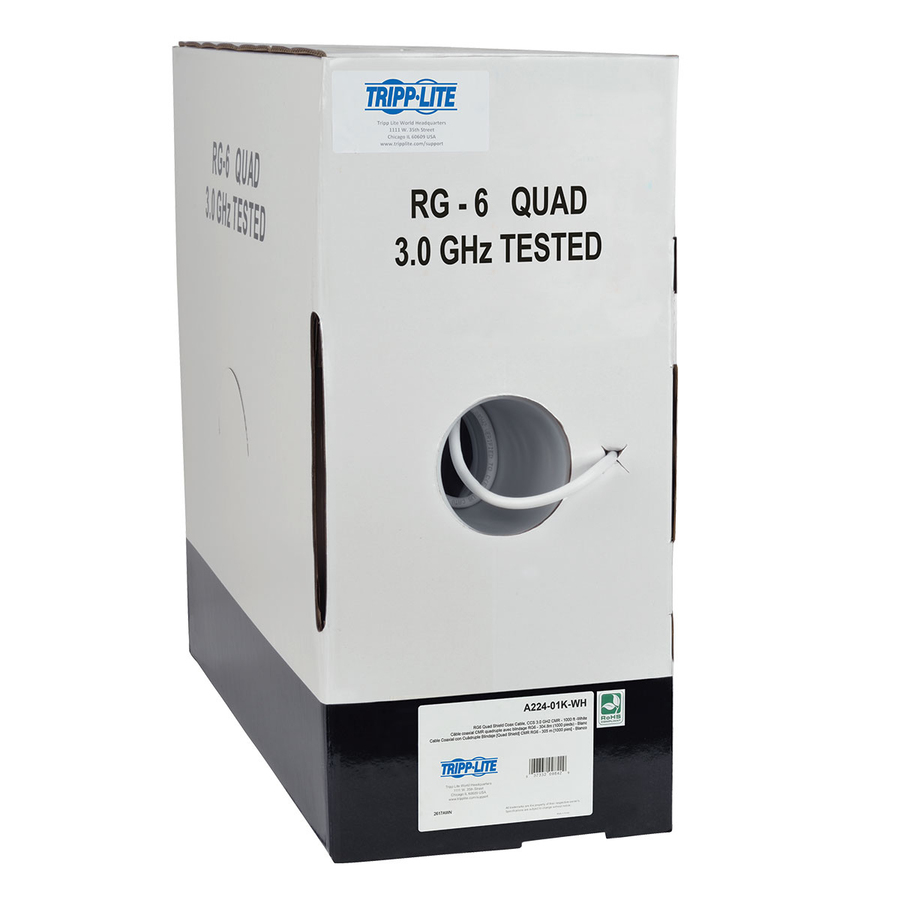

The A224-01K-WH RG6/U Quad-Shield CMR-Rated Coaxial Cable is premium cabling designed for high-frequency indoor/outdoor applications, such as television antennas, digital cable and satellite transmissions, and video surveillance systems. RG6/U coaxial cable has lower attenuation than RG59 cable, making it superior over long distances.Manufactured with an 18 AWG copper-clad steel center conductor, the 75-ohm A224-01K-WH is tested to 3 GHz and features quad shielding, which means aluminum foil and braid shielding over another layer of aluminum foil and braid for error-free transmission. Protected by a flame-retardant CMR-rated PVC jacket, this white cable meets UL1655, UL13, UL444 and RoHS standards.
- Meets UL1655, UL13, UL444 and RoHS standards
- Flame-retardant CMR-rated PVC jacket
- Quad foil and braid shielding for error-free transmission
- 18 AWG copper-clad steel center conductor
- Lower attenuation than RG59 cable for longer distances
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Size / Dimensions | |
|---|---|
| Shipping Height | 9.45" |
| Shipping Width | 20.87" |
| Shipping Weight (Approximate) | 35 lb |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cable Length | 1000 ft |
| Cable Type | Coaxial |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | 1 x Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | Yes |
| American Wire Gauge | 18 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332196415 |
| MPN | A224-01K-WH |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
