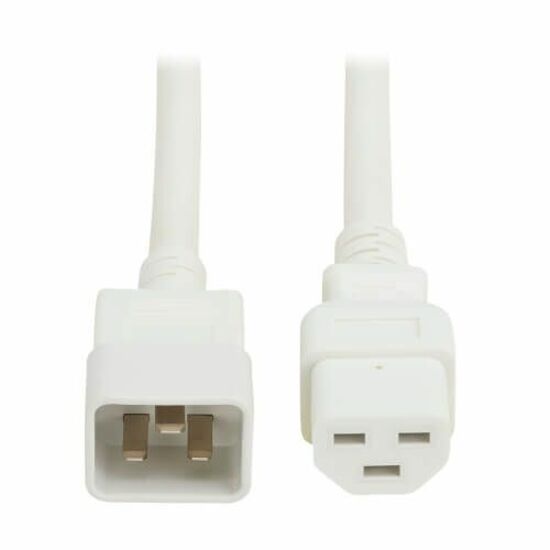

Features | 20A C20-to-C21 Power Cable for Network Devices That Require a Heavy-Gauge Connection
This heavy-duty cord features 12 AWG wire suitable for high power connections, making it a reliable solution for large server applications that require a higher-rated, heavier-gauge cable, including AI/machine-learning data centers. The 2.5-foot (0.76-meter) length helps reduce cable clutter by providing a tailor-made fit between the device and the PDU or UPS in a crowded rack enclosure.
Recommended for High-Temperature Environments
The P035-2P5-AWH can be used to connect a blade server, large router or network switch with a C22 inlet, usually found on high-powered, high-temperature (overall operating temperature maximum 105°C/221°F) equipment, to a PDU or UPS system. It's an ideal upgrade to a power cord with improved temperature threshold for data center applications in which temperature control and fire safety are high priorities.
White Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The UL-listed cable has a white PVC jacket with fully molded white ends, which is easy to identify quickly in a crowded PDU or UPS system and helps prevent the cable from becoming accidentally disconnected.
- Recommended for powering switches, servers and other high-powered network devices
- 20A C21/C20 connectors support temperatures up to 221°F (105°C) frequent in rack enclosures
- Thick 12 AWG wire manages high power levels required for larger equipment
- 2.5 ft. length allows flexibility in mounting devices in a rack while avoiding cable clutter
- White cable jacket allows quick identification of devices in a crowded rack enclosure
- This product is covered by a Lifetime Limited Warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Current Rating | 20 A |
| Voltage Rating | 250 V AC |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 2.50 ft |
| First End Connector Type | IEC 60320 C20 |
| First End Connector Detail | 1 x 3-pin IEC 60320 C20 Male |
| Second End Connector Type | IEC 60320 C21 |
| Second End Connector Detail | 1 x 3-pin IEC 60320 C21 Female |
| Jacket Material | Service Junior Thermoplastic (SJT) |
| Gauge | 12 |
| Number of Conductors | 3 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 221°F (105°C) |
| Minimum Operating Temperature | -4°F (-20°C) |
| Maximum Storage Temperature | 221°F (105°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Miscellaneous | |
|---|---|
| Product Name | White , 250V , C20 to C21 - Heavy-Duty , Power Cord , 20A , 2.5 ft. (0.76 m) , 12 AWG |
