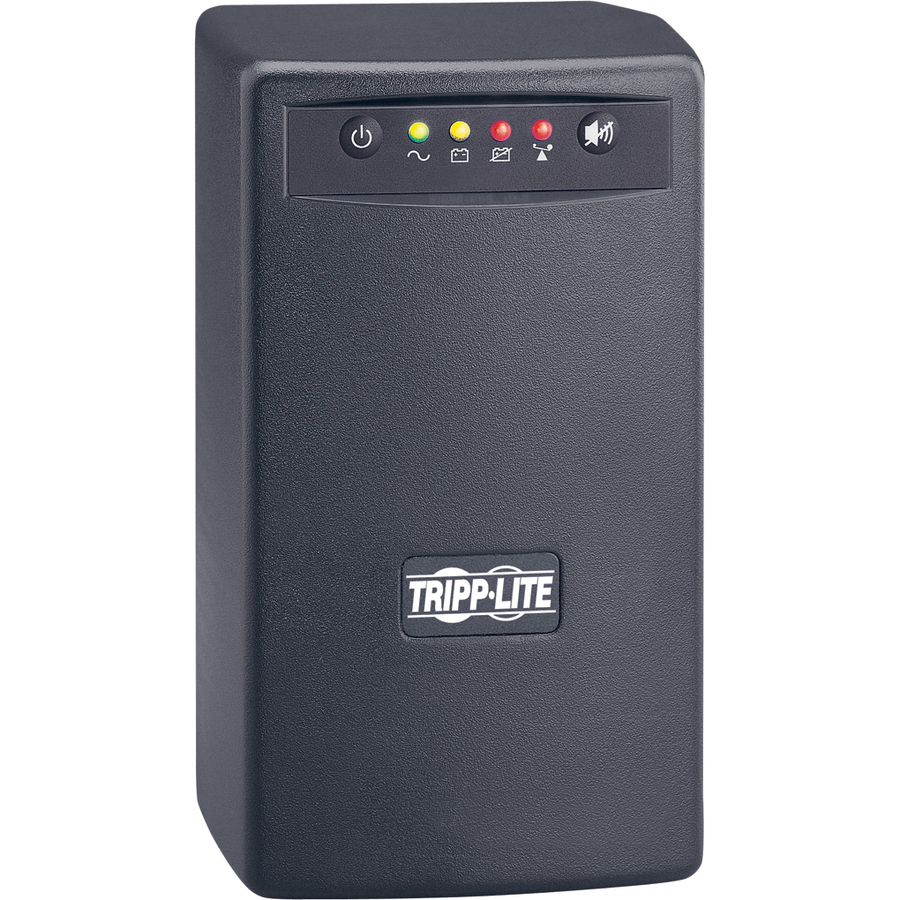

Eaton Tripp Lite Series OmniSmart 120V 500VA 300W Line-Interactive UPS, Tower, USB port

305.49 305.49
305.49

305.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Status Indicators
  • Alarm
  • Dataline Protection
  • USB
  • Cord Length
  • Receptacle Detail
  • Receptacle Type
  • Plug/Connector Type
  • Form Factor
  • Battery Life
  • Battery Chemistry
  • Typical Battery Recharge Time
  • Maximum Operating Temperature
  • Input Voltage
  • Output Voltage
  • Certifications & Standards
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Additional Information
  • Manufacturer
  • Product Type
  • Product Line
  • Manufacturer Website Address
  • Load Capacity (Watt)
  • Load Capacity (VA)
  • Backup/Run Time (Full Load)
  • Backup/Run Time (Half Load)
This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Tripp Lite's OMNI SMART 500 line interactive UPS system offers voltage regulation, surge suppression and long lasting battery support for personal computers, internetworking equipment and other sensitive electronics. Supports entry level PC systems for up to 30 minutes during power failures so that connected equipment can be shutdown without data loss. Automatic Voltage Regulation (AVR) circuits regulate brownouts as low as 75 volts and overvoltages as high as 147 back to normal 120V levels without consuming battery power. Offers complete desktop power protection in an attractive black upright tower configuration. Includes 3 battery supported outlets for computer, monitor and one vital system peripheral, plus 3 additional surge suppression-only outlets for printers and other system accessories not requiring battery support. USB port enables optional unattended system shutdown without data loss in the case of extended power failure, USB cabling and PowerAlert software included. HID-compliant USB port also enables direct integration with built-in power management and auto-shutdown features of Windows and MAC OS X. Built-in dataline protection jacks offer protection of a single dialup phone/DSL line. Built-in audible alarm and 4 front panel LEDs indicate line power status, battery power status, battery low/replace status and overload status. 500VA/300 wat

More from the Manufacturer

  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 4 minute runtime on full load to preserve critical data from power shortage interruptions
  • 300 W load capacity - backup power for your valuable electronics
  • 500 VA load capacity provides sufficient backup during power failures
  • 4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
  • Lead Acid battery chemistry for your convenience and better usability
  • NEMA 5-15P plug/connector type for convenient usage with added dependability
  • NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
  • 110 V AC input voltage for better reliance and maximum dependability
  • 120 V AC output voltage for better reliance and maximum usability
Brand
Brand Eaton Corporation
Power & Battery
Dataline Protection RJ-11
Receptacle Detail 6 x NEMA 5-15R
Receptacle Type NEMA 5-15R
Plug/Connector Type NEMA 5-15P
Battery Life 6 Year
Battery Chemistry Lead Acid
Typical Battery Recharge Time 4 Hour
Input Voltage 110 V AC
Output Voltage 120 V AC
Load Capacity (Watt) 300 W
Load Capacity (VA) 500 VA
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 14.60 Minute
USB Ports
USB Yes
Size / Dimensions
Form Factor Tower
General Features
Alarm On Battery
Manufacturer Eaton Corporation
Cables
Cord Length 6 ft
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
