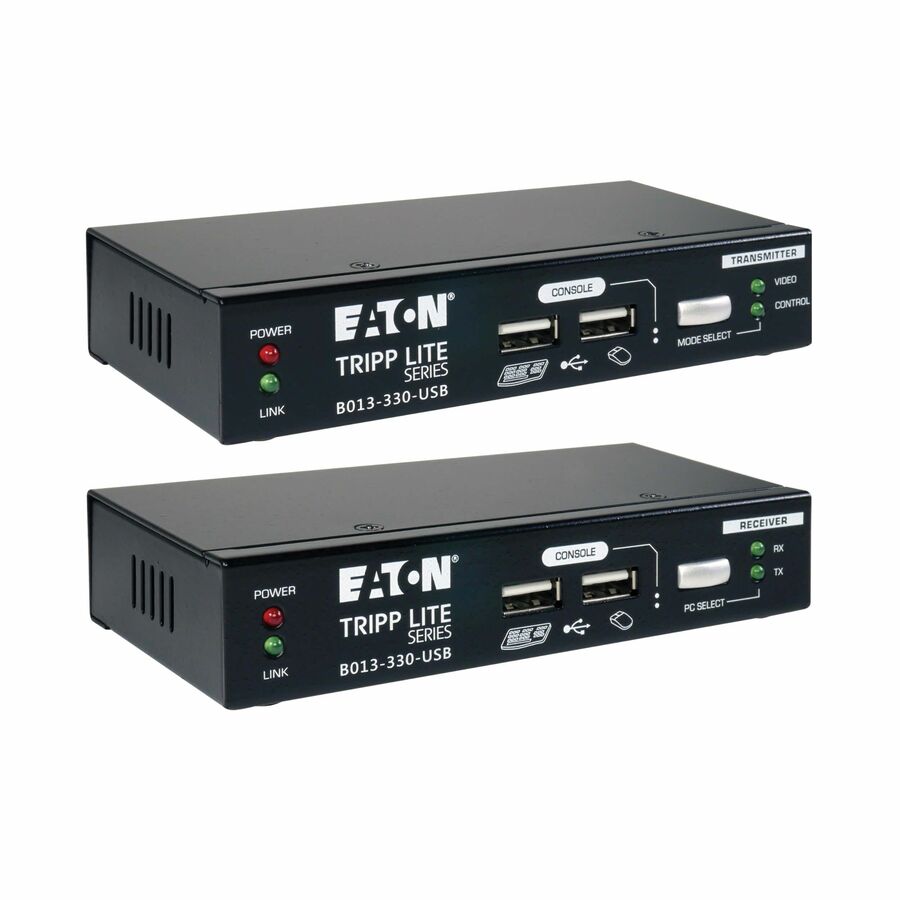

Eaton Tripp Lite Series KVM Extender with VGA and USB Connections, Up to 330 ft.

430.99 430.99
430.99

430.99 / Units
  • Brand
  • Transmitter Weight (Approxima
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Platform Supported
  • Connectivity Technology
  • USB
  • Number of USB Ports
  • Network (RJ-45)
  • VGA
  • Number of VGA Ports
  • Product Color
  • Color Family
  • Receiver Width
  • Receiver Weight (Approximate)
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Input Voltage Range
  • Input Voltage
  • Frequency
  • Maximum Operating Distance
  • Environmental Compliance
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Device Type
  • Manufacturer Website Address
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Extends Console up to 330 ft. from Computer, KVM or Server

This KVM extender lets you control a computer, server or KVM switch from up to 330 feet (100 meters) away. Just connect the included transmitter and receiver with a Cat5 UTP cable (sold separately). Console ports on both the transmitter and receiver allow local or remote control of the connected device. Plus, the receiver doubles as a two-port KVM, allowing the connection of a local computer.

Recommended for Small to Medium-Sized Businesses (SMBs)

Being able to extend VGA video and USB signals up to 330 feet is ideal in commercial office spaces where the computers are not close to your workstation, as well as SMB applications needed KVM switches without requiring an IP network for long-distance control. The B013-330-USB supports VGA video resolutions up to 1920 x 1200.

Pure Hardware Solution Is Easy to Install and Operate

The B013-330-USB supports all major operating systems, including Windows and macOS. All necessary cables are included as a convenient off-the-shelf package, making the KVM Extender simple to maintain. As a pure hardware solution, you don't have to worry about software/network conflicts. This KVM Extender is compatible with any computers using VGA and USB connections.


  • Extends VGA video + USB keyboard/mouse from your computer up to 330 ft.
  • Console ports on each end allow for local or remote control of connected computer
  • Receiver doubles as 2-port KVM, allowing for connection of a local computer
  • Supports VGA video resolutions up to 1920 x 1200, including 1080p
  • Easy to install and operate with all necessary cables included
Brand
Brand Eaton Corporation
Power & Battery
Input Voltage Range 100-240V
Input Voltage 240 V AC
Networking & Connectivity
Connectivity Technology Wired
USB Ports
USB Yes
Number of USB Ports 6
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 1920 x 1200
Size / Dimensions
Transmitter Weight (Approxima 10.22 oz
Receiver Width 5.15"
Receiver Weight (Approximate) 10.22 oz
Receiver Height 1.02"
Receiver Depth 2.55"
Transmitter Depth 2.55"
Transmitter Height 1.02"
Transmitter Width 5.15"
General Features
Frequency 60 Hz
Maximum Operating Distance 330 ft
Manufacturer Eaton Corporation
Device Type KVM Extender
Video Ports
VGA Yes
Number of VGA Ports 4
