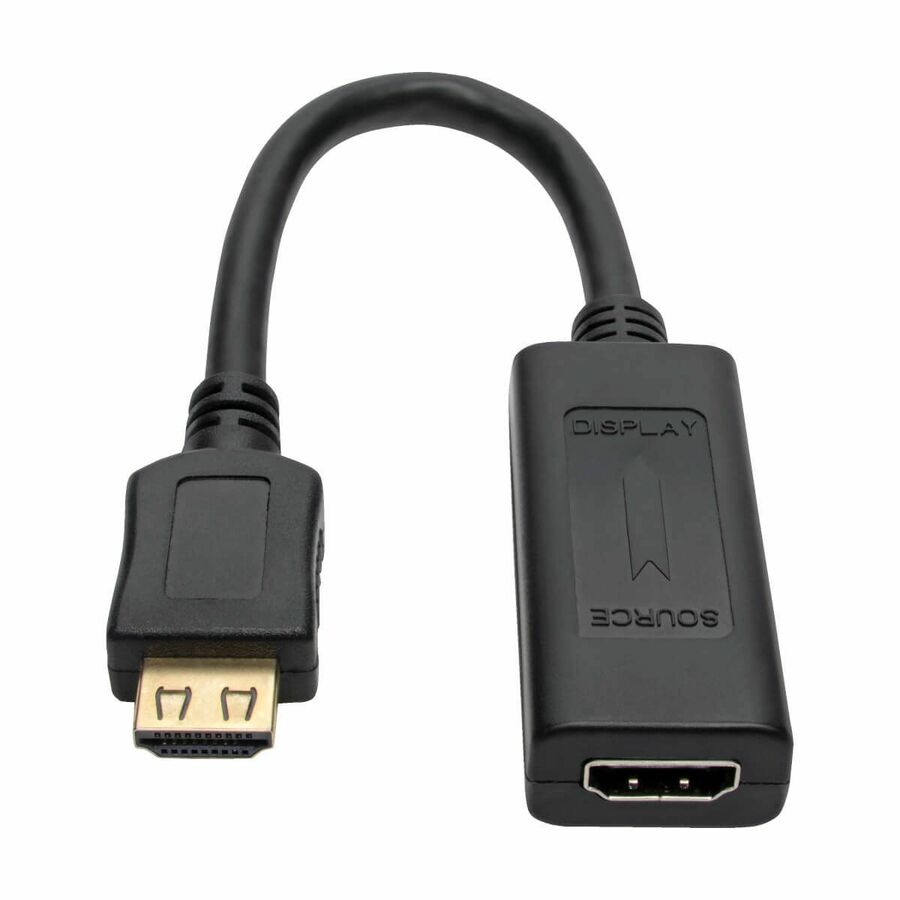

Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connectionSoftware or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
- When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
- Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Size / Dimensions | |
|---|---|
| Shipping Height | 1.30" |
| Shipping Width | 6.14" |
| Shipping Weight (Approximate) | 1.76 oz |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Conductor | Copper |
| Cable Length | 1 ft |
| Cable Type | HDMI |
| Connector Type on First End | HDMI 1.3 Digital Audio/Video - Female |
| Connector on First End Details | 1 x 19-pin HDMI 1.3 Digital Audio/Video - Female |
| Connector Type on Second End | HDMI 1.3 Digital Audio/Video - Male |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332141057 |
| MPN | B123-001 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
