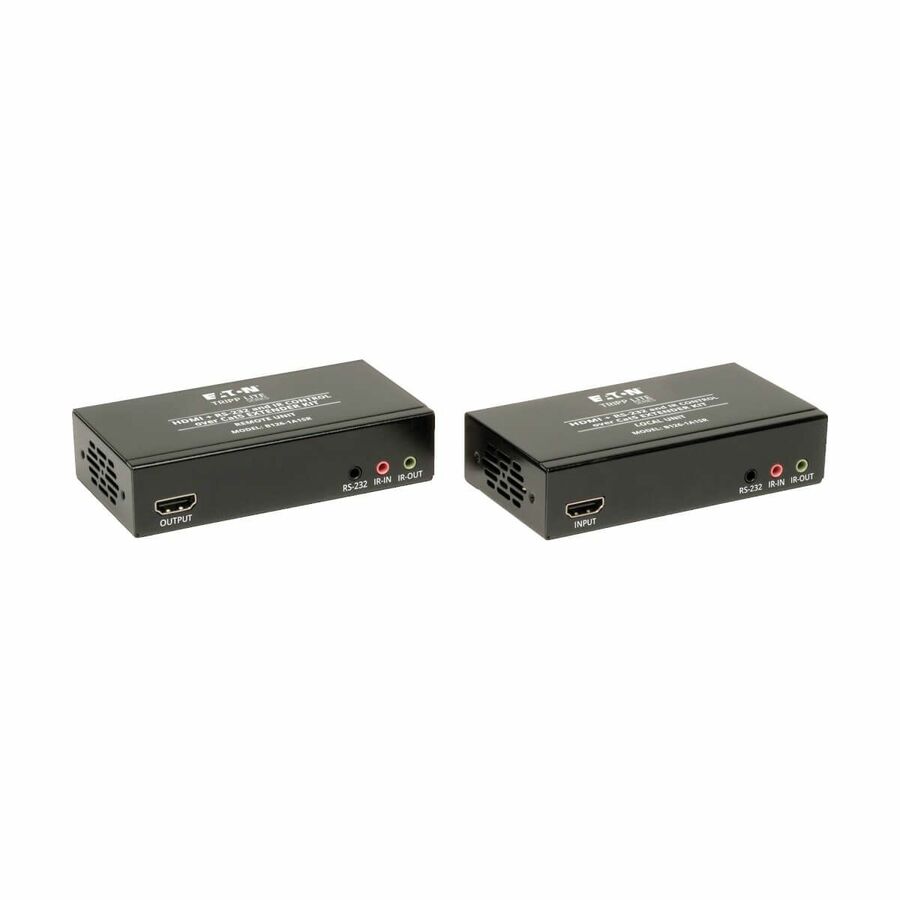

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Transmitter/Receiver, 4K, Serial and IR Control, Up to 328 ft. (100 m), TAA

$ 500.99 $ 500.99
$ 500.99

$ 500.99 / Units
  • Brand
  • Product Name
  • Number of Network (RJ-45) Por
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Additional Warranty Informati
  • Connectivity Technology
  • HDMI Out
  • HDMI In
  • Number of HDMI Outputs
  • Number of HDMI Inputs
  • Network (RJ-45)
  • Twisted Pair Cable Standard
  • Serial Port
  • Form Factor
  • Product Color
  • Color Family
  • Receiver Width
  • Receiver Height
  • Receiver Depth
  • Transmitter Depth
  • Transmitter Height
  • Transmitter Width
  • Maximum Video Resolution
  • Input Voltage
  • Graphics Modes
  • Maximum Operating Distance
  • TAA Compliant
  • Environmental Compliance
  • Certifications & Standards
  • Packaged Quantity
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
Add to cart
Buy now
Add to wishlist
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days
Contact Us
Documents
Manufacturer-Brochure PDF

Extender kit features a transmitter unit and a receiver unit to extend your HDMI audio and video when the source is located farther than conventional cables allow. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. You can extend a 3840 x 2160 (4K x 2K) Ultra High Definition (UHD) signal at 24/30Hz up to 328' with a single Cat6a cable, up to 230' with a 24 AWG solid-wire Cat6 cable, and up to 150' with a 26 AWG solid-wire Cat5e cable (N001- and N002-Series). For extending computer video resolutions of 1920 x 1200 at 60 Hz or high-definition video resolutions of 1080p at 60 Hz up to 328', use a single 24 AWG solid-wire Cat5e/6 cable. You can also control RS-232 serial devices, such as touch-screen displays or scanners, at baud rates up to 115 Kbps. Kit supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video and HDCP.

More from the Manufacturer

  • Plug and play-no software or drivers to install
  • Works with all operating systems and HDMI video sources
  • Controls RS-232 serial devices at baud rates up to 115 Kbps
  • Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
  • Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m)
Brand
Brand Eaton Corporation
GPU / Graphics
Graphics Modes 4K
Power & Battery
Input Voltage 220 V AC
Networking & Connectivity
Connectivity Technology Wired
HDMI Ports
HDMI Out Yes
HDMI In Yes
Number of HDMI Outputs 1
Number of HDMI Inputs 1
Ethernet Port
Number of Network (RJ-45) Por 2
Network (RJ-45) Yes
Camera / Webcam
Maximum Video Resolution 3840 x 2160
Size / Dimensions
Form Factor Pole-mountable
Receiver Width 6.20"
Receiver Height 2"
Receiver Depth 11.30"
Transmitter Depth 11.30"
Transmitter Height 2"
Transmitter Width 6.20"
General Features
Maximum Operating Distance 328 ft
Manufacturer Eaton Corporation
Misc Ports
Serial Port Yes
Cables
Twisted Pair Cable Standard Category 6
Compliance & Certification
TAA Compliant Yes
