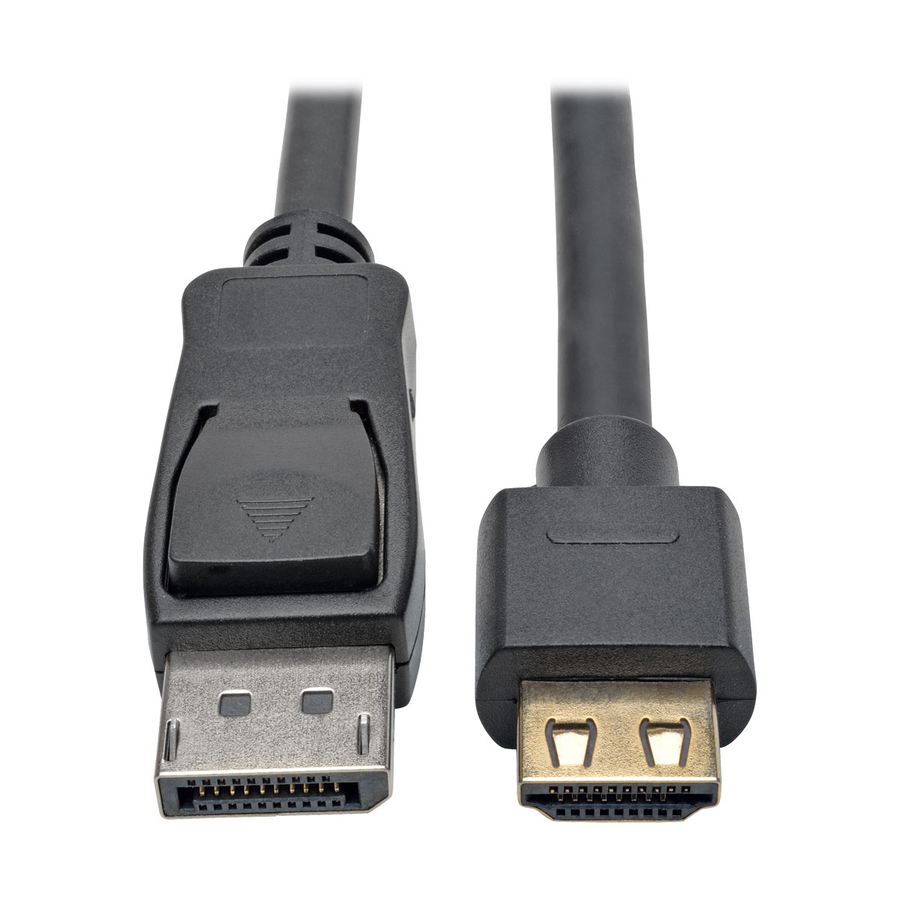

Eaton Tripp Lite Series DisplayPort 1.2 to HDMI Active Adapter Cable (M/M), 4K 60 Hz, Gripping HDMI Plug, HDCP 2.2, 20 ft. (6.1 m)

89.99 89.99
89.99

89.99 / Units
  • Brand
  • Connector on Second End Detai
  • Shipping Height
  • Shipping Width
  • Shipping Weight (Approximate)
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Features
  • Cable Length
  • Cable Type
  • Connector Type on First End
  • Connector on First End Details
  • Connector Type on Second End
  • Contact Plating
  • Connector Plating
  • Product Color
  • Color Family
  • TAA Compliant
  • Environmentally Friendly
  • Environmental Compliance
  • Country of Origin
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Device Supported
  • Manufacturer Website Address
  • Supported Resolution
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

The P582-020-HD-V2A DisplayPort 1.2a to HDMI Active Adapter Cable (M/M) connects a DisplayPort-enabled PC or Mac to the HDMI port on a 4K monitor, projector or television. With a DisplayPort male connector on one end and a gold-plated high-grip HDMI male connector on the other, this cable requires no separate power adapter. It lets you continue using an existing 4K HDMI display without the extra expense of buying a new DisplayPort monitor.

Recommended for displaying crystal-clear video on a large monitor or digital sign, this cable supports HDMI 2.0 with full UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz. The P582-020-HD-V2A also supports rich, full audio (if your DisplayPort card supports audio passthrough) and the latest HDCP 2.2 standards.

Because it's an active adapter, the 20-foot P582-020-HD-V2A is compatible with Single-Mode and Dual-Mode (DP++) DisplayPort output. It's perfect for use with graphics cards, such as AMD Eyefinity, that don't output DP++ signals.

The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Its special high-grip plug prevents a loose or accidentally disconnected cable from causing picture loss. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

More from the Manufacturer

  • Supports HDMI 2.0 and EDID specifications
  • High-grip HDMI plug prevents accidental disconnections
  • No separate power adapter required
  • Compliant with latest HDCP 2.2 standards
  • Supports video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
Brand
Brand Eaton Corporation
Screen / Display
Supported Resolution 3840 x 2160
Size / Dimensions
Shipping Height 12"
Shipping Width 10"
Shipping Weight (Approximate) 15.52 oz
General Features
Manufacturer Eaton Corporation
Cables
Cable Length 20 ft
Cable Type DisplayPort/HDMI
Connector Type on First End HDMI 2.0 Digital Audio/Video - Male
Connector on First End Details 1 x HDMI 2.0 Digital Audio/Video - Male
Connector Type on Second End DisplayPort 1.2a Digital Audio/Video - Male
Contact Plating Gold
Connector Plating Gold
Compliance & Certification
TAA Compliant Yes
Environmentally Friendly Yes
