Features | 750VA/475W/120V Pure Sine Wave Battery Backup for Sensitive Devices

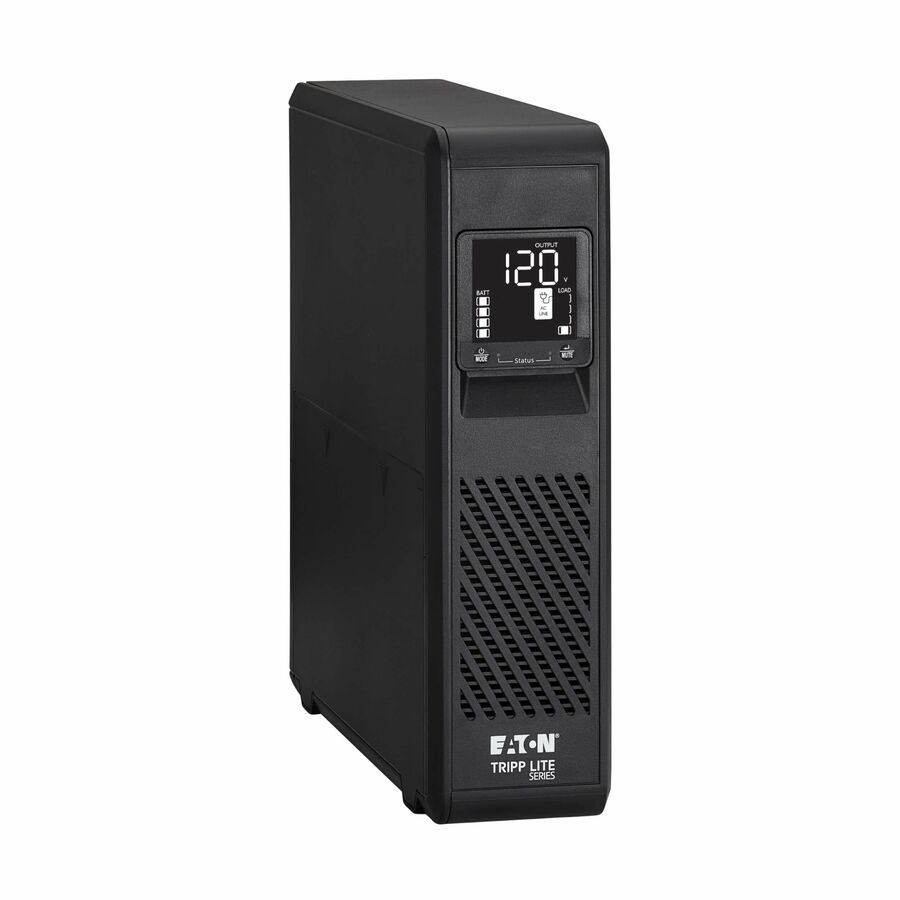

The SMART750PSRTNC line-interactive cloud-connected UPS system combines cloud connectivity, remote management and advanced protection features. Its slim tower design is suitable for desktop or floor placement or installed in a rack (with optional mounting kit, sold separately). It's recommended for home, office and retail use, as well as network closets in both local and remote locations.
Easy-to-Use Cloud-Enabled Remote Monitoring Powered by Brightlayer
Eaton's cloud-based remote monitoring app offers convenient setup, control and management of a single UPS or a larger deployment. Scan the QR code on the UPS to download the app to your mobile device. Receive alerts, push configurations, silence alarms or control load banks using a mobile app or web browser. Being able to monitor and access multiple UPS systems from a remote location helps reduce the number of site visits, saving you time and money. The unit's NFC (near-field communication) feature lets you configure network settings instantly from your mobile device.
Allows Time to Back Up Critical Files During a Blackout
During short blackouts, the SMART750PSRTNC switches to battery power to keep connected equipment running. This allows you enough time to save data and complete a safe shutdown in case of a longer outage. Once AC power is restored, the SMART750PSRTNC restarts automatically, regardless of battery charge level, saving you a costly site visit.
NEMA 5-15R Outlets and Controllable Load Banks Protect Connected Components
Eight 5-15R outlets provide battery backup and surge protection for your security camera, router, network switch, server and other sensitive electronic devices. Remote monitoring allows individual control of three switchable load banks that can be powered on/off or cycled remotely, saving you an expensive and time-consuming on-site visit.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions
AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART750PSRTNC can correct brownouts as low as 97V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Seamless Connectivity for Advanced Remote Monitoring and Configuration
An RJ45 port for Ethernet connectivity enables use of the cloud-based remote monitoring application. A USB-C port provides direct connection to the command line interface (CLI) for configuration and identification of local network parameters.
Intuitive LCD, Home-Friendly Alarm and Diagnostic LEDs Keep You Informed 24/7
The easy-to-read LCD and two status LEDs allow at-a-glance local monitoring of UPS status, voltage, load level, battery level and other vital information. A solid green LED means the battery is charged, a flashing green indicates it is charging and a solid red indicates fault. The audible alarm indicates power outage, low-battery and fault conditions. It can be silenced via the LCD or the remote monitoring app, which will still respond to silenced alarms.
Optional Mounting Kit Allows Rack Installation
With the optional RKTRYPSC rack-mounting kit (sold separately), you can install the SMART750PSRTNC in 2U of space in a 2-post or 4-post rack.
- Delivers pure sine wave power to ensure reliable protection for sensitive electronics
- Cloud-connected dashboard allows 24/7 remote monitoring via browser or mobile app
- Create your account with two-factor authentication for an additional layer of security
- Quick setup in minutes via mobile app gets your connected devices protected right away
- NFC technology allows easy configuration of network settings from your mobile device
- Switchable load banks let you control or reboot devices using the mobile app
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 8 |
| Number of Load Management Out | 3 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| Energy Saving | Green Energy-Saving |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 8 Hour |
| Input Voltage Range | 97 V AC - 145 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 7 A |
| Efficiency Detail | 95% (AC Mode) |
| Load Capacity (Watt) | 475 W |
| Load Capacity (VA) | 750 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.633 |
| DC System Voltage | 24 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Transfer Time | 10 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 158 J |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Management Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Rack Height | 2U |
| General Features | |
|---|---|
| Alarm | Remote Shutdown |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 12.10 W |
| Cables | |
|---|---|
| Cord Length | 5 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Energy Star | Yes |
| Sound Emission | 40 dB |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $250000 Lifetime |
