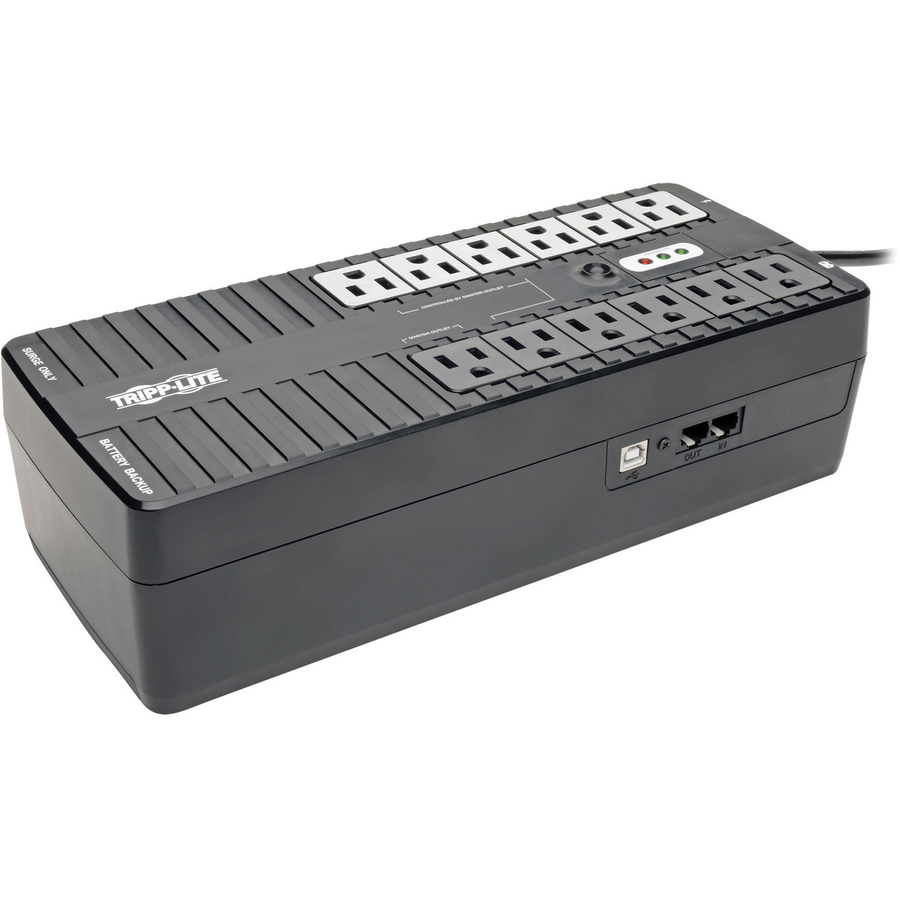

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes six battery-supported outlets for computer, monitor and four vital system peripherals, plus six additional surge suppression-only outlets for accessories not requiring battery support. Four of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. Built-in, single-line RJ11 phone suppression protects modem, fax machine, cordless phone or other accessories with a dialup/DSL phone connection. UPS system meets RoHS standards. 750VA/450-watt power handling ability supports entry-level PC systems for up to 45 minutes during power fail conditions.
- $100,000 Ultimate Lifetime Insurance
- 3-year limited warranty
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Number of Battery & Surge Out | 6 |
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| EMI/RFI Noise Filter | Yes |
| Dataline Protection | RJ-45 |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets |
| Receptacle Detail | 12 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 6 |
| Typical Battery Recharge Time | 6.50 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 450 W |
| Load Capacity (VA) | 750 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8.60 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| General Features | |
|---|---|
| Alarm | Replace Battery |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft |
| Energy Star | Yes |
| Recycled | No |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
