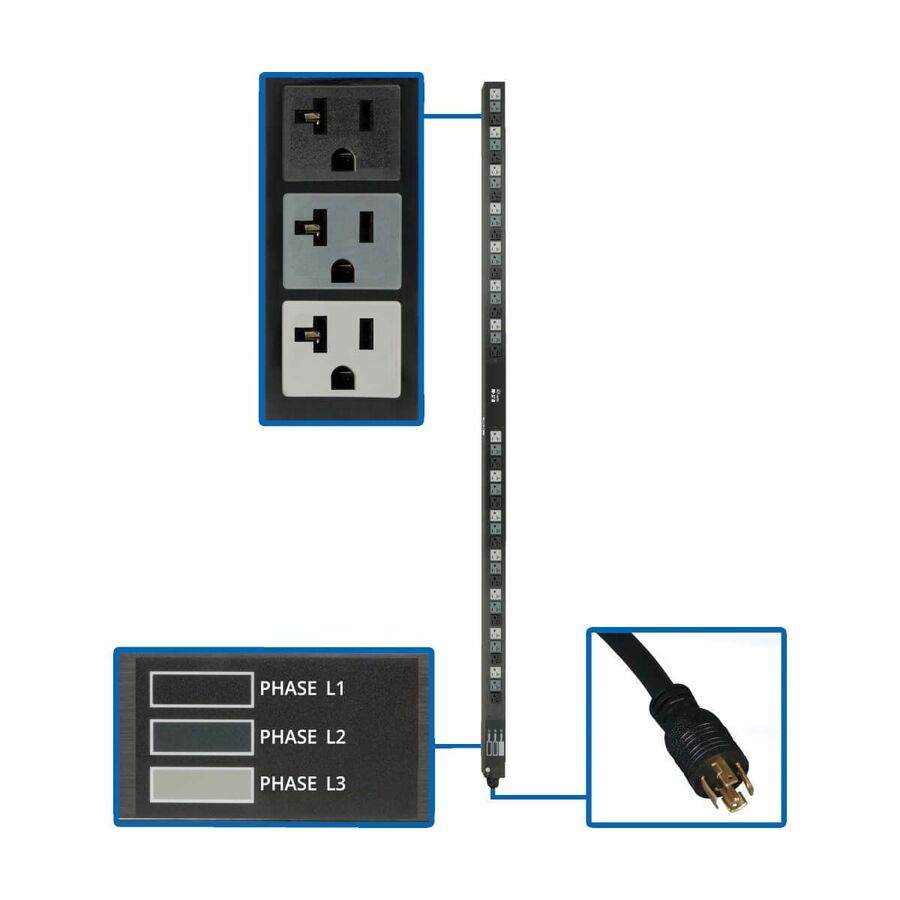

3-Phase 120V PDU Distributes Network-Grade Power to Multiple Loads
This basic PDU is an ideal no-frills unit for networking, telecom, security, audio/video and sound reinforcement applications. Recommended for small to mid-sized data centers, computer rooms and network closets, the PDU3V6L2120LV features 42 NEMA 5-15/20R outlets in three single-phase output load banks for connecting equipment. A six-foot (1.8-meter) cord with NEMA L21-20P 3-phase input plug connects to your facility's AC power source, generator or protected UPS system to distribute power to connected loads.
Easy to Install Vertically in an EIA-Standard 19 in. Rack
The 70-inch 0U PDU's all-metal housing mounts vertically using the pre-installed toolless mounting buttons or the included brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the PDU with outlets facing the rear for better airflow or equipment access. Cable retention brackets keep power cords organized and your rack free of clutter. The PDU's switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
TAA-Compliant for GSA Schedule Purchases
The PDU3V6L2120LV is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- PDU distributes AC power to multiple servers and balances the load on the servers
- Basic PDU deliver power to wiring closets, server rooms & equipment racks in a cost-effective way
- NEMA 5-15/20R receptacle type to ensure maximum usability and reliable power output
- Three Phase phase PDU provides dependable power output with maximum efficiency
- NEMA L21-20P plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for better reliance and maximum dependability
- 120 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 5700 W |
| PDU Type | Basic |
| Phase | Three Phase |
| Receptacle Detail | 42 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Plug/Connector Type | NEMA L21-20P |
| Locking Receptacles | Cord Retention Bracket |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Input Current | 16 A |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical/Toolless |
| Rack Height | 0U |
| General Features | |
|---|---|
| Protection Type | Circuit Protection |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332255709 |
| MPN | PDU3V6L2120LV |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
