5-Port HDMI Switch with Remote Connects 5 Sources to One 4K HDMI Display
An excellent addition to your home theater, the B119-005-UHD allows you to connect five separate HDMI audio/video sources to your 4K television, projector or monitor's HDMI input and switch between them. For instance, connect a cable box, Blu-ray player, Xbox, Roku and audio receiver to your 4K HDTV, and use the included remote control to switch manually from one input to another.
Transmits Crystal-Clear Video up to 4K x 2K for Ultra High Definition Presentations
This 5-port HDMI switch with remote ensures UHD performance with video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz and 48-bit True Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It meets 3D, HDMI 2.0, HDCP 2.2 and EDID standards. Switch between source devices using the unit's Select button or the remote control.
Ready to Use Right from the Package, So You Can Plug and Play Immediately

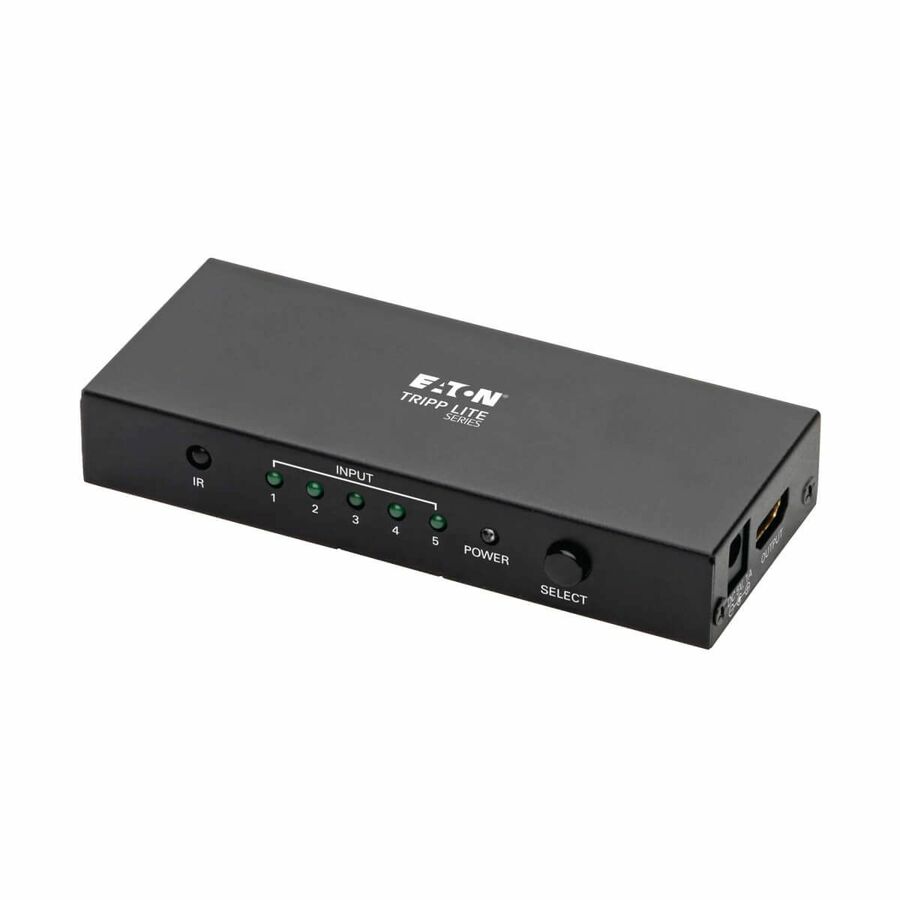

The compact metal switch requires no software or drivers to download and install. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite's P569-Series), and plug the included external power supply into an AC power source. A red LED indicates the unit is receiving power, and green LEDs indicate connected HDMI inputs. When the currently used source is powered off, the unit automatically switches to the next powered-on source.
3-Year Warranty
The B119-005-UHD is backed by a 3-year warranty, ensuring reliability and performance.
- 3-year limited warranty
- Plug-and-play operation with no software required for easy, immediate installation
- Compact metal unit fits easily into home theater or office workspace setup
- Delivers full, rich DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio
- Transmits UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz
- Switch between 5 source devices with included remote for ultimate convenience
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Graphics Modes | 4K |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Cable |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 5 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 � 2160 |
| Input Devices | |
|---|---|
| Number of Input Devices Suppo | 5 |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
