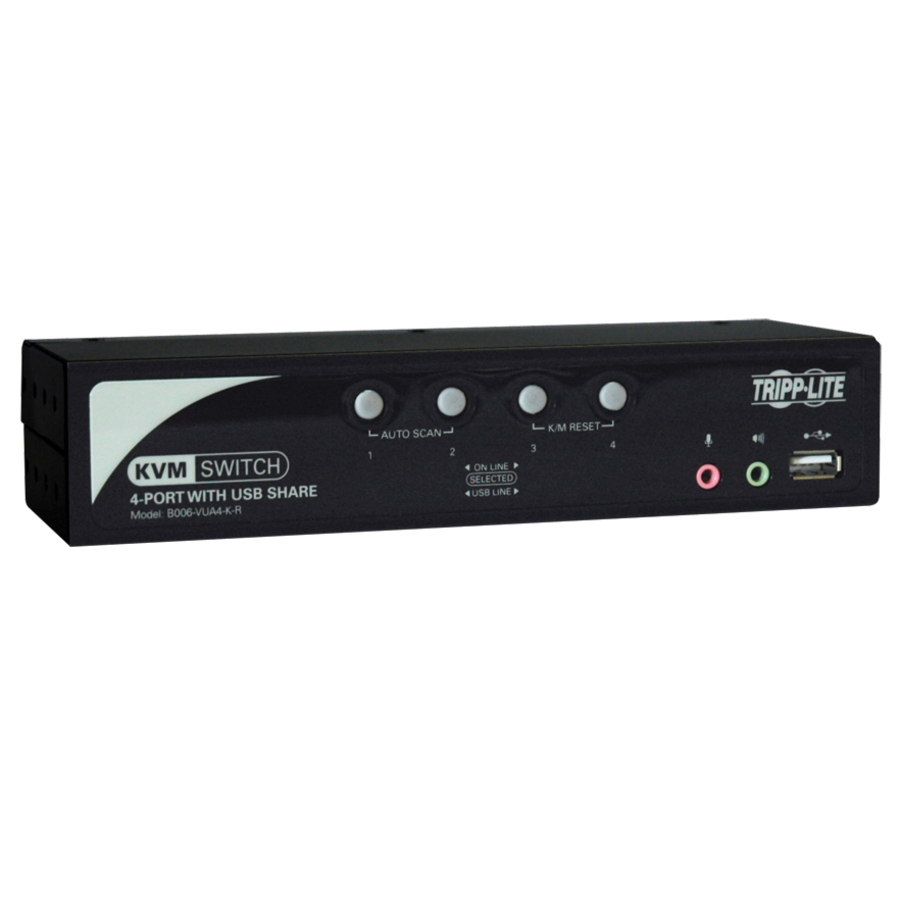

Eaton Tripp Lite Series 4-Port KVM Switch with Audio, OSD and Peripheral Sharing

318.49 318.49
318.49

318.49 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • USB
  • Number of USB Ports
  • Number of PS/2 Ports
  • PS/2 Port
  • Form Factor
  • Rack Height
  • Maximum Video Resolution
  • Environmentally Friendly
  • Country of Origin
  • Package Contents
  • Limited Warranty
  • Manufacturer
  • Product Type
  • Product Model
  • Manufacturer Website Address
  • Number of Computers Supported
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Tripp Lite's B006-VUA4-K-R is constructed of heavy-duty steel housing and is the optimal solution for controlling multiple computers, audio and USB peripherals, and can be used in either a desktop environment or mounted in a 19in rack. Connect up to 4 USB computers with the included 4 USB KVM cable kits, or use P757-010 PS/2 KVM cable kits to connect PS/2 computers. Built-in 3.5mm jacks allow for speaker and microphone audio to be shared amongst the connected computers. Also built-in is a 2-Port USB 2.0 hub, which allows for the sharing of USB devices amongst computers connected via USB KVM cable kits. The on-screen display (OSD) provides two levels of security, with 1 Administrator account and up to 4 User accounts, and can be displayed in English, Japanese or German. It supports video resolutions up to 2048 x 1536, and features a compact design that does not require software or complicated set-up procedures. Compatible with Windows, Mac, Linux, Sun, UNIX, Novell and DOS.

More from the Manufacturer

  • Compatible with all major operating systems
  • 2-Level security - 1 Administrator and up to 4 Users
  • Built-in 3.5mm audio jacks allow speaker and microphone audio to be shared amongst the connected computers
  • Includes a built-in 2-Port USB 2.0 hub for sharing of devices amongst computers connected with a USB KVM cable kit
  • Package includes 4 USB + Audio KVM cable kits
  • Control up to 4 USB or PS/2 computers from a single monitor, keyboard and mouse
Brand
Brand Eaton Corporation
USB Ports
USB Yes
Number of USB Ports 2
Camera / Webcam
Maximum Video Resolution 2048 x 1536
Size / Dimensions
Form Factor Desktop
Rack Height 1U
General Features
Manufacturer Eaton Corporation
Number of Computers Supported 4
Misc Ports
Number of PS/2 Ports 2
PS/2 Port Yes
Compliance & Certification
Environmentally Friendly Yes
