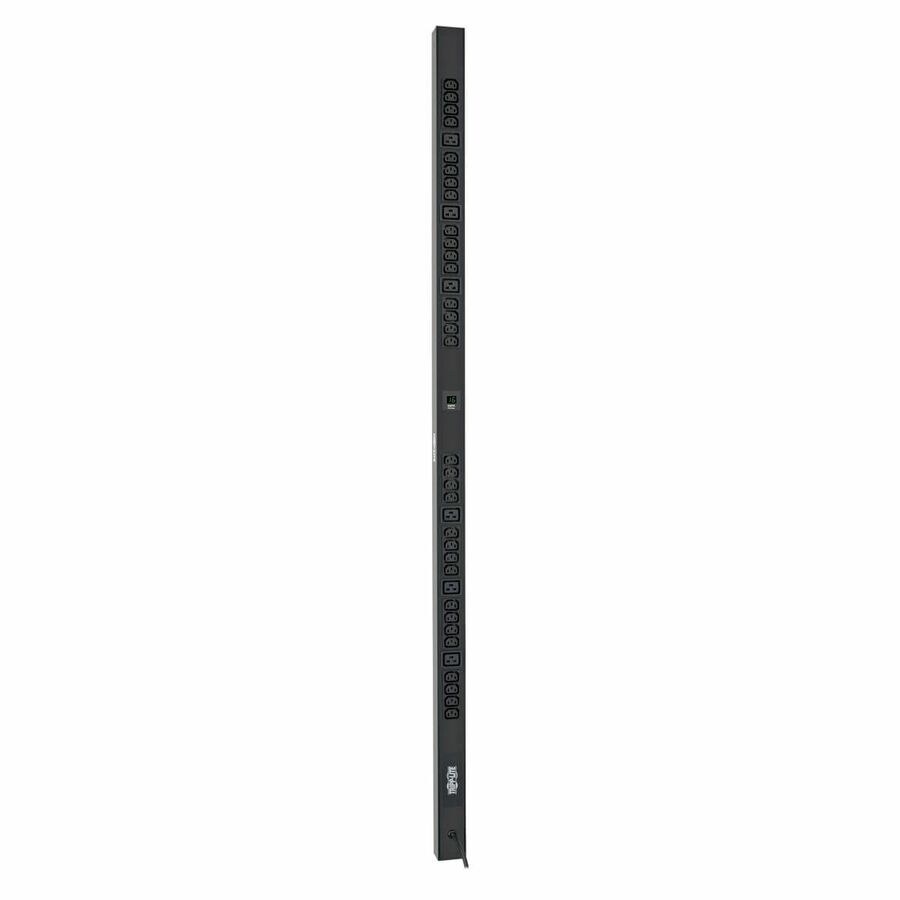

This single-phase Local Metered PDU offers real-time local reporting of load level in amps via built-in digital display. Enables visual monitoring of PDU load levels to prevent overloads as additional equipment is added. Offers reliable rack-mount multi-outlet power distribution from any protected UPS, generator or mains input power source. High-quality design includes rugged all-metal housing and secure rack-mount installation with included mounting accessories.
Features
- 3.84kW 16A single phase 208/230V Local Metered Power Distribution Unit / PDU
- Two-digit lighted meter reports combined total output current in amps
- 10ft / 3m input cable with Blue IEC309 16A input plug
- 0U 63.75in / 162cm vertical rackmount format installs vertically, using no rack spaces
- 38 total outlets (6 C19, 32 C13)
- Plug-lock cord retention sleeves keep C20 and C14 equipment plugs from accidental disconnection
- Toolless installation supported in button-mount compatible equipment racks
- Bolt-down installation brackets support installation in other racks and additional surfaces
- A device fitted with multiple outputs for the distribution of electric power
- Metered PDU offers reliable, rack-mount and multi-outlet power source
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- Single Phase phase PDU provides dependable power output with maximum efficiency
- IEC 60309 16A Blue (2P+E) plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for better reliance and maximum dependability
- 208 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 3700 W |
| PDU Type | Metered |
| Phase | Single Phase |
| Receptacle Detail | 6 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | IEC 60309 16A Blue (2P+E) |
| Locking Receptacles | P-Lock |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 16 A |
| Power Source | UPS |
| Size / Dimensions | |
|---|---|
| Form Factor | Vertical |
| Mount Type | Button Mount |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 10.01 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 122°F (50°C) |
| Minimum Storage Temperature | -22°F (-30°C) |
