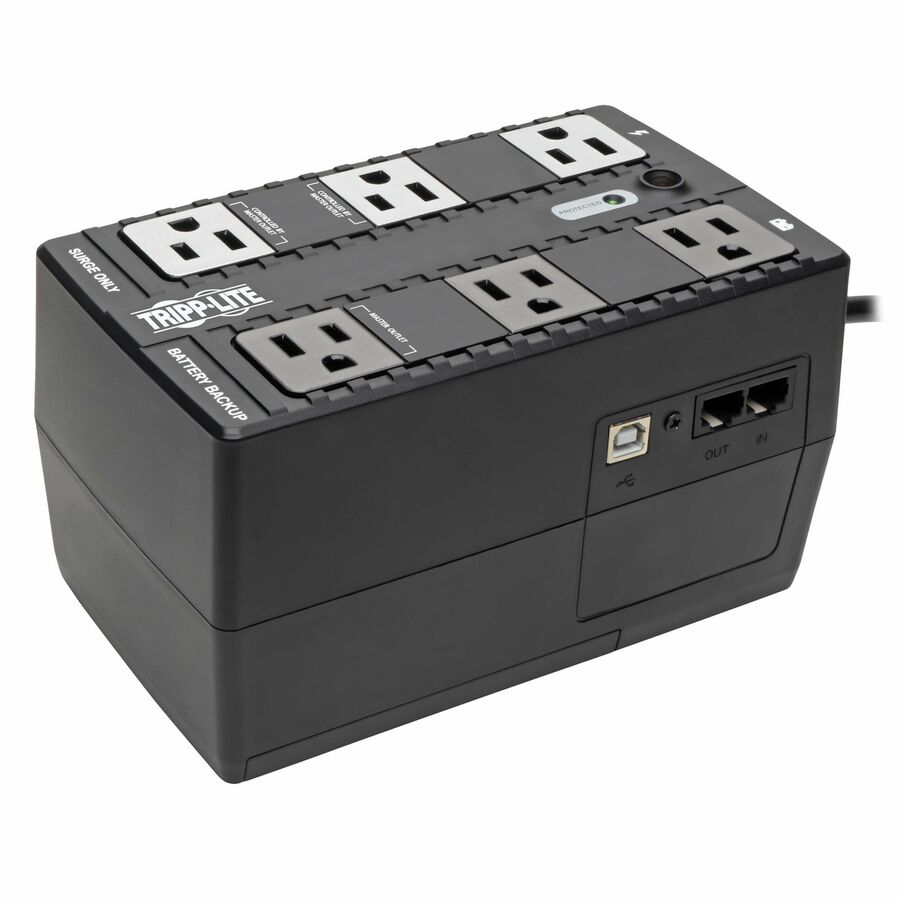

Ultra-high efficiency ECO Series UPS System saves energy by automatically powering off unused computer accessories when the computer is not in use. UPS system uses less electricity than conventional models. Design includes three battery-supported outlets for computer, monitor and one vital system peripheral, plus three additional surge suppression-only outlets for accessories not requiring battery support. Two of the surge-only outlets are designated Eco outlets that can be configured to automatically power off when the computer enters standby mode or is shutdown. USB port enables UPS configuration options and unattended system shutdown without data loss in the case of extended power failure. UPS system meets RoHS standards. 350VA/180-watt power handling ability supports entry-level PC systems for up to 12 minutes during power fail conditions.
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- 6 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Overload Protection | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Number of Surge-only Outlets | 3 |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 6.50 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 210 W |
| Load Capacity (VA) | 350 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 12 V DC |
| Backup/Run Time (Full Load) | 2 Minute |
| Backup/Run Time (Half Load) | 8 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 316 J |
| USB Ports | |
|---|---|
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ultra-compact Desktop/Tower/Wall Mount |
| General Features | |
|---|---|
| Alarm | Low Battery |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 2.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 133°F (56.1°C) |
| Maximum Storage Elevation | 6561 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Recycled | No |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
