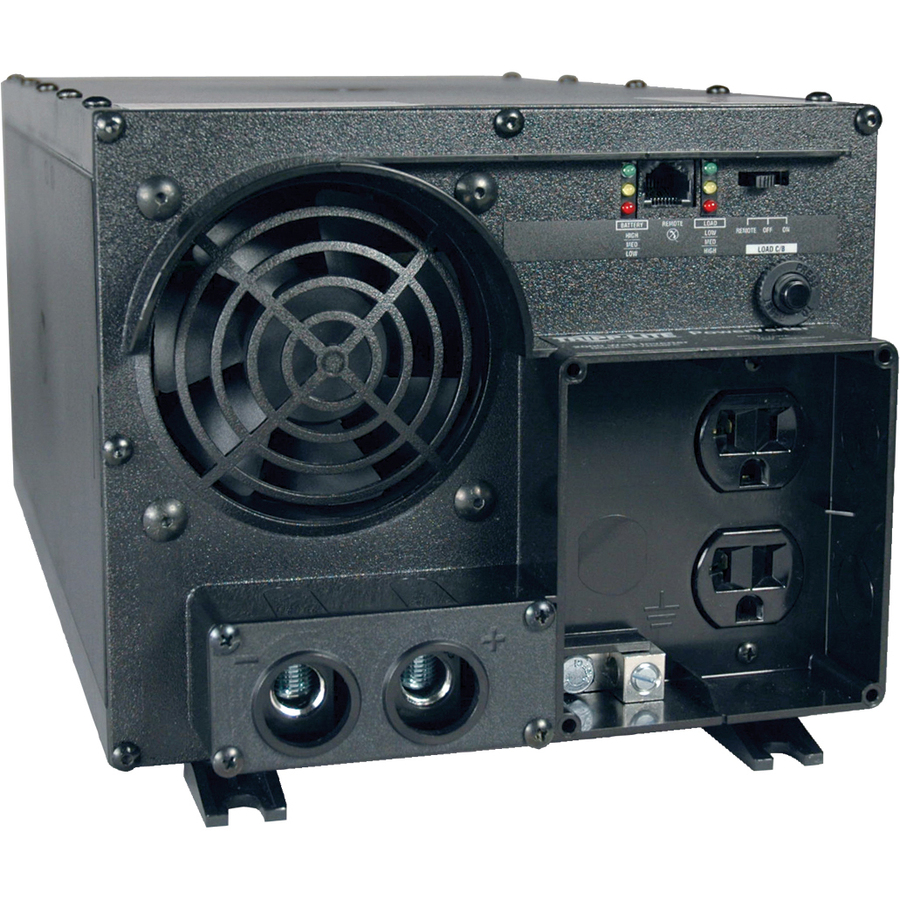

Continuously supplies up to 2400W of 120V AC power to 2 AC outlets from any 24V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current startup needs.
- High-efficiency power conversion
- Automatic overload protection
- 2400W continuous output
- Peak surge output: OverPower (up to 1 hour)—3600W; Double-Boost (up to 10 seconds)—4800W
- 24V DC input; 120V AC output; 2 outlets
- Designed for heavy duty and motor loads
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacles | 2 x NEMA 5-15/20R |
| Plug/Connector Type | Hardwired |
| Input Voltage Range | 20 V DC - 30 V DC |
| Input Voltage | 24 V DC |
| Output Voltage | 120 V AC |
| Continuous Power Load | 2400 W |
| Peak Power Load | 4800 W |
| Waveform Type | Pulse-width Modulated Sine Wave |
| General Features | |
|---|---|
| Maximum Frequency | 60 Hz |
| Manufacturer | Eaton Corporation |
