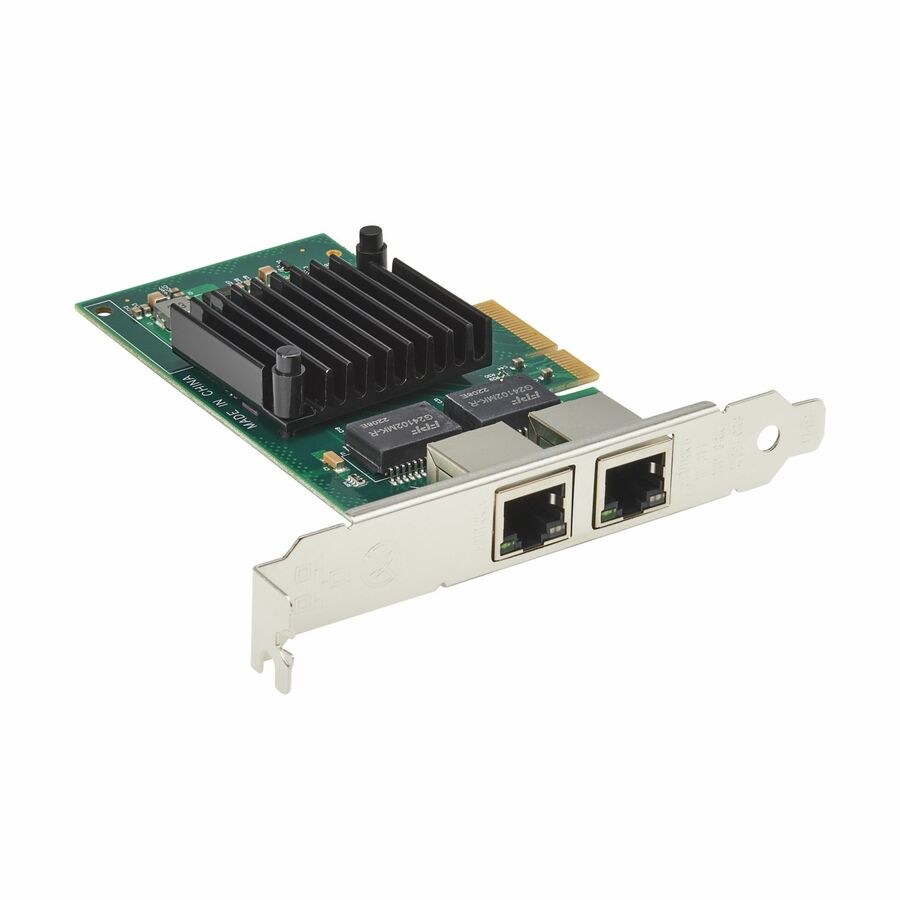

Adds Dual Gigabit Ethernet Ports to Your Desktop Computer
The high-performance PCE-1G-02-NIC connects to your desktop computer's motherboard and adds two 10/100/1000 Mbps RJ45 ports via an available four-lane PCI Express (PCIe) slot. Based on the bridgeless Intel I350 controller, this adapter is a 1 Gbps networking innovation for enterprise and data center applications. Add multiple Ethernet ports to dual-homed proxy or gateway systems for added security and redundant connectivity for uninterrupted network connections.
Recommended for VM Environments
This PCIe network interface card (NIC) is ideal for Virtual Machine (VM) environments with multiple operating systems that require shared or dedicated NICs. It also is a valuable addition to desktop PC servers and workstations with few PCIe slots available in which turning one RJ45 port into two is beneficial.
Loaded with the Latest Features
The PCE-1G-02-NIC supports common IEEE standards, including 802.3ab (1000Base-T Gigabit Ethernet), 802.3u (100base-TX), 802.3az, 802.1Q (VLAN) and 802.1ad. The high-performing bridgeless design supports PCI Express Gen 2.1 5GT/s x4, compatible with PCIe x8 or x16.
Innovative Power Management Features for Enterprise and Data Centers
Energy Efficient Ethernet (EEE) and DMA coalescing increase efficiency and reduce power consumption for enterprise and data center applications. Scalable iSCSI performance delivers cost-effective SAN connectivity. The PCE-1G-02-NIC also supports jumbo frames, VMDq, DPDK, PXE, WOL and FCoE. Flexible I/O virtualization is ideal for port partitioning and quality of service (QoS) of up to 32 virtual ports.
Installs in Minutes
The halogen-free adapter is compatible with copper UTP cabling, including 1000Base-T Cat5e/Cat6 or higher up to 100 meters, 100Base-Tx Cat5/Cat5e/Cat6 or higher up to 100 meters, and 10Base-T Cat3/4/5/5e/6 or higher up to 100 meters. The PCE-1G-02-NIC can be installed with either a standard or low-profile bracket (both are included).
- Adds two 1G network ports to a single four-lane PCI Express slot in a desktop PC
- Based on Intel I350 chipset for superior functionality in complex network applications
- Compliant with IEEE 802.ab, 802.3u, 802.3 az, 802.1Q and 802.1ad
- Includes a low-profile mounting bracket for low-profile PC builds
- Compatible with Windows and Linux operating systems
- 2-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-T |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Bracket Height | Low-profile |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | I350-T2 |
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| Host Interface | PCI Express x16 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| Minimum Operating Humidity (N | 35% |
| Maximum Operating Humidity (N | 90% |
