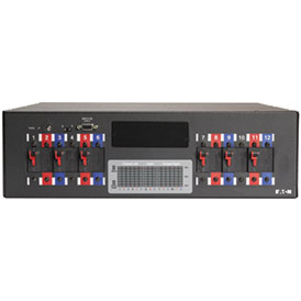

The Eaton RPM simplifies data center power distribution by delivering up to 36 kW of power in a 3U cabinet. Connect directly from a three-phase UPS (such as the Eaton BladeUPS), or other utility source, to power secondary power distribution devices such as the Eaton ePDU. Twelve pole positions distribute power to completely customizable input and output configurations and voltages.
- Enables customer installation and changes without the services of a licensed electrician
- Installs in only 3U of space in EIA 19" rack or enclosure (or wall-mounted), all hardware included
- Branch circuit monitoring option allows easy load monitoring over the network
- Load information available from the front of the rack, no need to check individual power strips in the rear of the cabinet (hot isle)
- "Power Equalizer" LED display gives quick visual indication of each circuit's load, reducing possibility of overloads and breakers tripped off line
- Distributes three-phase power to 12 poles, grouped into two sets of six poles, with choice of output receptacle types
- Serves data center loads with various voltages, power cord configurations and layouts
- Provides plug-and-play primary distribution of power from a three-phase input source to secondary power distribution devices
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacles | 4 x NEMA L21-20R |
| Input Voltage | 230 V AC |
| Output Power | 12 kW |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
