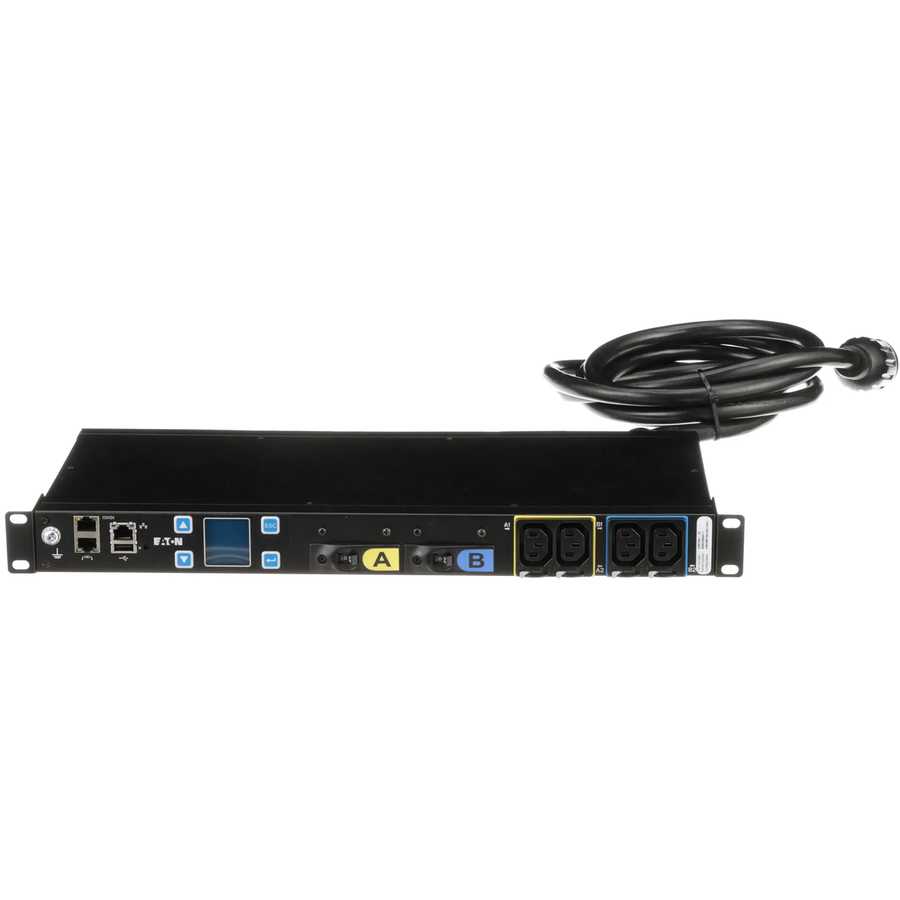

Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
- With PDUs decisions for load balancing and minimizing extra cost can be managed
- IEC 60320 C13 receptacle type to ensure maximum productivity with added feasibility
- NEMA L6-30P plug/connector type for better, dependable connectivity and desired power output
- 230 V AC input voltage for better reliance and maximum dependability
- 230 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 5760 W |
| Receptacle Detail | 16 x IEC 60320 C13 |
| Receptacle Type | IEC 60320 C13 |
| Plug/Connector Detail | 1 x NEMA L6-30P |
| Plug/Connector Type | NEMA L6-30P |
| Input Voltage | 230 V AC |
| Output Voltage | 230 V AC |
| Input Current | 24 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
