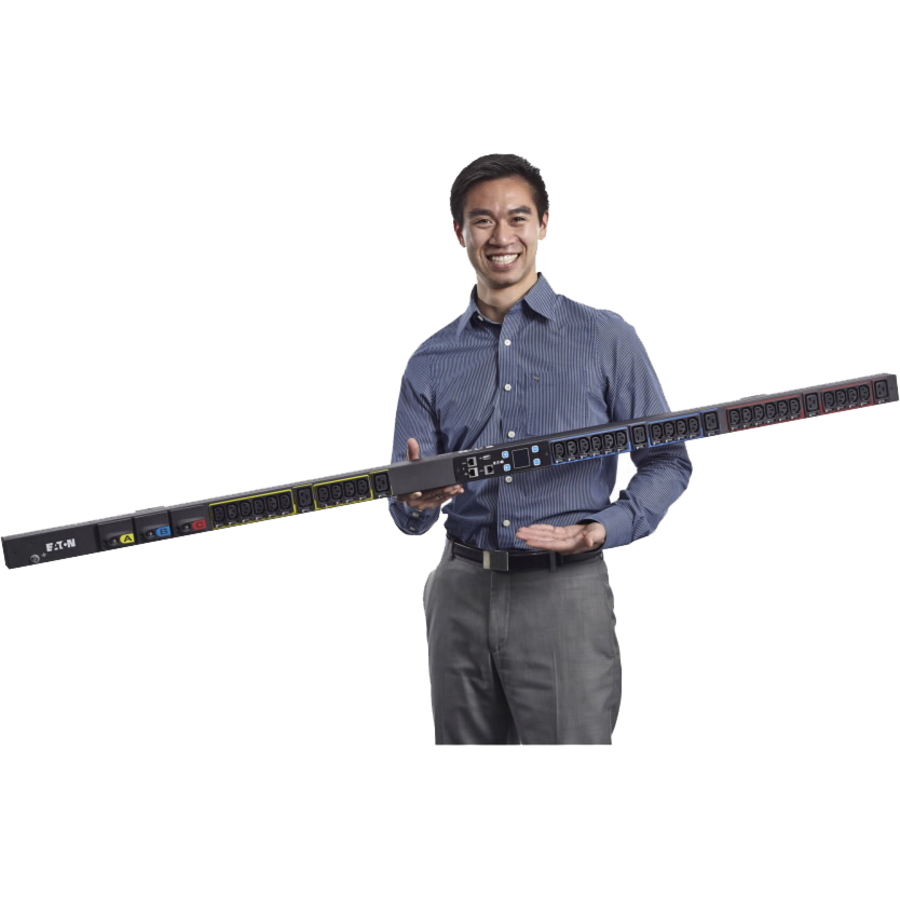

Eaton Metered Input ePDUs
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3Metered Input models feature best-in-class technologies, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
- PDU provides power control as remote controlled relay & load monitoring
- IEC 60320 C13 receptacle type to ensure maximum usability and reliable power output
- IEC 60309 460P9 plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 17.30 kW |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Detail | 1 x IEC 60309 460P9 |
| Plug/Connector Type | IEC 60309 460P9 |
| Input Voltage | 230 V AC |
| Input Current | 48 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Vertical |
| Rack Height | 0U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Brand | Eaton Corporation |
| MPN | EMI338-06 |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
