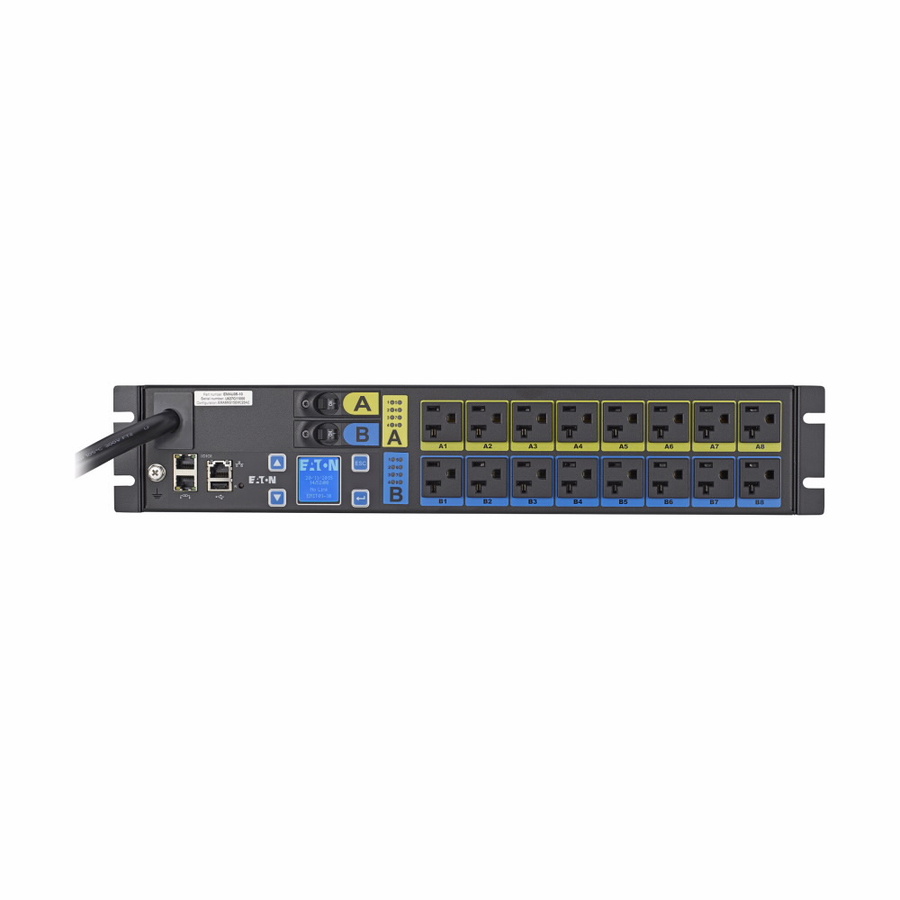

Eaton ePDU G3 Managed
Eaton Managed ePDUs allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Integrated with Eaton's management software, you can control these units from any computer on the network server.
Eaton Managed ePDUs allow you to monitor and control critical factors such as voltage, current and power factor. This level of information allows you to make the right decision when it comes to energy consumption in your data center. Integrated with Eaton's management software, you can control these units from any computer on the network server.
- Provide circuit protection and easy configuration for trouble-free access
- Remotely control individual outlets for rebooting of locked equipment with switched PDUs
- NEMA 5-20R receptacle type to ensure maximum dependability and optimal performance
- NEMA L5-30P plug/connector type for reliable, productive connectivity and optimal power output
- 120 V AC input voltage for better reliance and maximum dependability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 2880 W |
| PDU Type | Switched |
| Receptacle Detail | 16 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Input Voltage | 120 V AC |
| Input Current | 24 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 2U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Miscellaneous | |
|---|---|
| Product Name | ePDU Managed 16-Outlet PDU |
