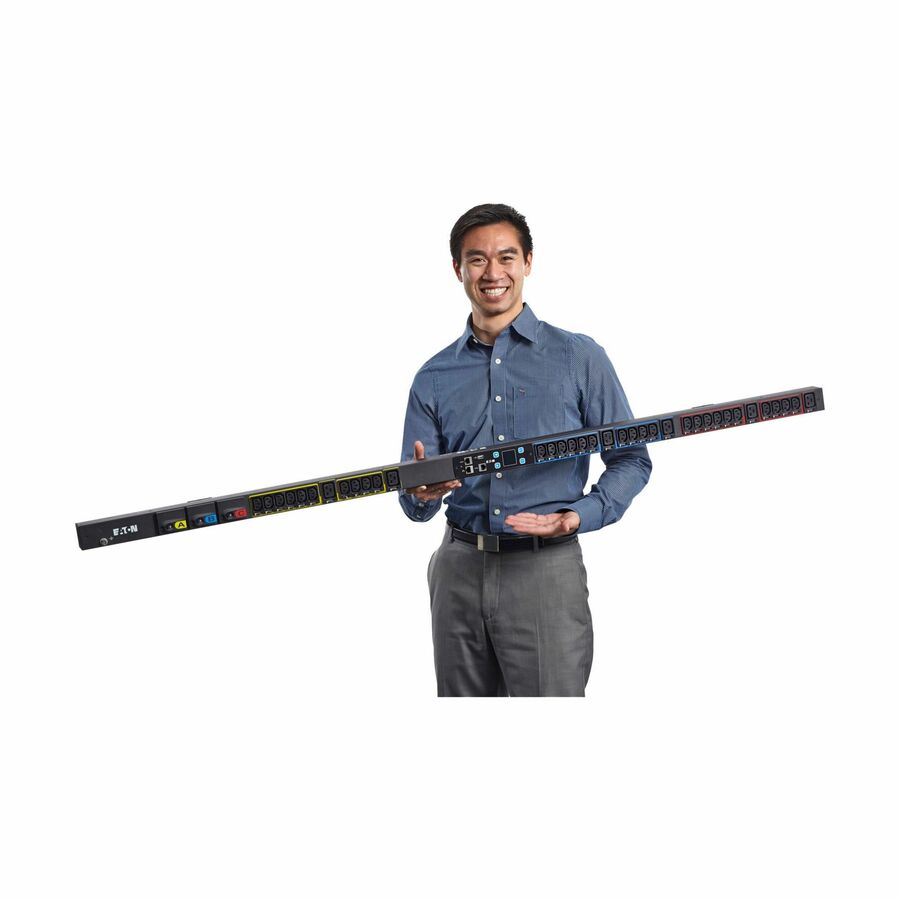

Eaton Metered Input rack PDUs give you remote monitoring capabilities and provide access to your power data whenever you want it, wherever you are. You also can monitor your critical equipment within each color-coded outlet section from a single interface, achieve ±1% billing grade accuracy and daisy chain four PDUs to share the same network connection and IP address.
- PDU provides active metering enabling energy optimization and circuit protection
- You can always avoid potential overloads with PDU meter
- IEC 60320 C13 receptacle type to ensure maximum dependability and optimal performance
- Three Phase phase PDU for reliable performance with maximum productivity
- CS8365 plug/connector type for efficient connectivity and feasible power output
- 230 V AC input voltage for optimal performance with maximum usability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| PDU Type | Metered |
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 12 x IEC 60320 C19 |
| Receptacle Type | IEC 60320 C19 |
| Plug/Connector Type | CS8365 |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 240 V AC |
| Input Current | 40 A |
| Load Capacity (Watt) | 14.40 kW |
| General Features | |
|---|---|
| Protection Type | Double Pole |
| Manufacturer | Eaton Corporation |
| Cables | |
|---|---|
| Cord Length | 3 ft |
