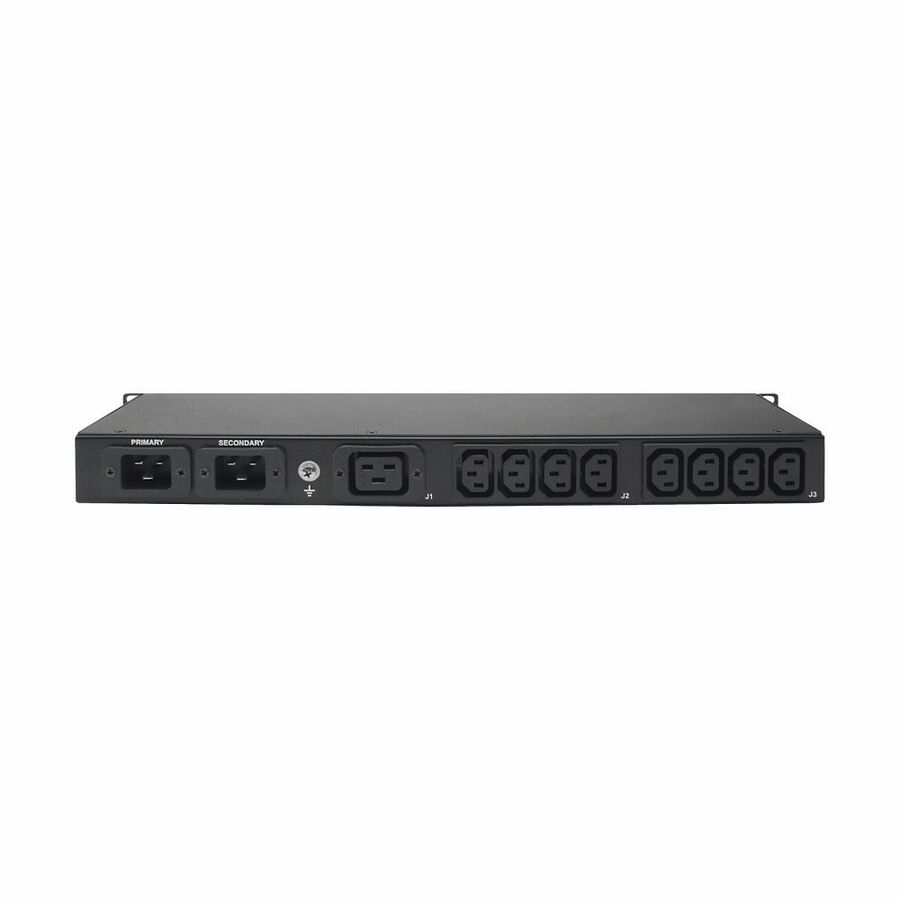

Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
- Integrates with Eaton network closet, server room and data center solutions
- eATS assures the highest level of redundancy to mission critical applications.
- Clearly labeled circuits simplify load balancing.
- Status LEDs indicate power available and output source
- Power is transferred back to the primary source when it is automatically restored
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
- Provide power redundancy to equipment with 1 or 2 power supplies
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 2880 W |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 2 x NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Input Voltage Range | 120 V AC - 230 V AC |
| Input Voltage | 230 V AC |
| Input Current | 24 A |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Manufacturer | Eaton Corporation |
