Designed for the data centre - to ensure maximum uptime and maximum efficiency
Simply Scalable.
Simply Scalable.

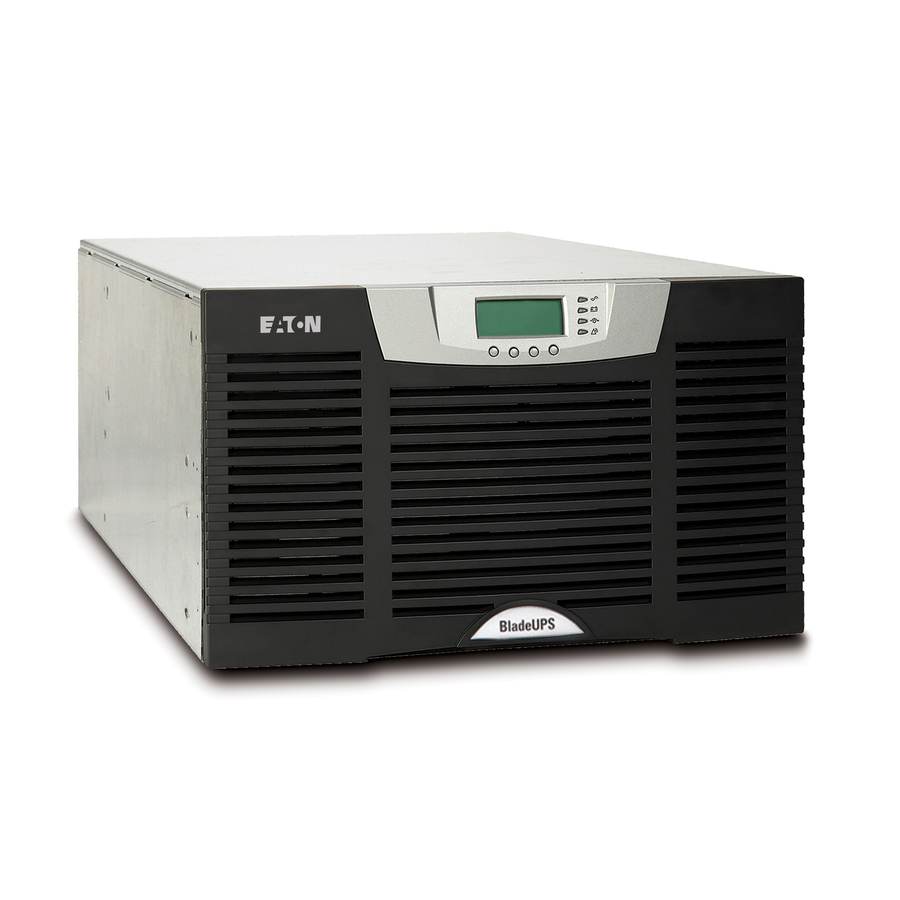

- Eaton BladeUPS provides scalable double-conversion backup power
- BladeUPS is designed for the data centre -to work in harmony with your servers and IT equipment to ensure maximum uptime and maximum efficiency
- Scalable architecture enables you to design, scale and grow your data centre as your demand grows.
- BladeUPS provides from 12kW to 60kW N+1 mounted in a single IT rack enclosure, with multiple power distribution options
- BladeUPS delivers an industry-leading 98% efficiency across the operating range, resulting in cooler operating conditions and less heat dissipation
- BladeUPS is extremely flexible and supports multiple configurations including power protection in each rack, centralised protection, zone protection or hybrid as required
- If your needs change or need to move your IT equipment, simply redeploy and reuse BladeUPS as single of parallel units elsewhere
- Multiple external batteries can be added to increase runtime
- BladeUPS has multiple power distribution options including the Rack Power Module (RPM), ePDUs or hardwired. The 3U RPM delivers single-phase power and can be deployed in the same rack as the UPS and IT equipment.
- Optimize your operational expenditure - Latest high efficiency technologies provide 98% efficiency, with 65% less heat dissipation to minimise your operational costs and reduce your carbon footprint
- A 60kW N+1 solution could save over €20,000 in 5 years in energy costs alone
- The small footprint of BladeUPS allows extra space for IT equipment in the rack and data centre.
- Due to the low heat dissipation, air conditioning requirements are reduced by up to a third and BladeUPS can be located close to IT equipment.
- Utilises Eaton's Advanced Battery Management system to prolong battery life by up to 50%
- Choose a pre configured solution, or configure yourself
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Phase | Three Phase |
| Input Frequency | 60 Hz |
| Receptacle Type | Hard Wire 5-wire |
| Plug/Connector Type | Hard Wire 5-wire |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Sealed |
| Input Voltage Range | 311 V AC - 519 V AC |
| Input Voltage | 400 V AC |
| Output Frequency | 60 Hz |
| DC System Voltage | 240 V DC |
| Backup/Run Time (Full Load) | 4.70 Minute |
| Backup/Run Time (Half Load) | 13.50 Minute |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 6U |
| General Features | |
|---|---|
| Alarm | Low Battery |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 371.03 W |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
