The Eaton automatic transfer switch (ATS) PDU enables you to remotely monitor alerts, provide redundant power and keep key mission-critical applications running. Generally used to provide power redundancy to equipment with a single power supply, the Eaton ATS PDU automatically transfers power between sources with no interruption if the primary source fails or requires maintenance to eliminate equipment downtime.
- PDU provides active metering enabling energy optimization and circuit protection
- NEMA 5-15R receptacle type to ensure maximum dependability and optimal performance
- NEMA 5-15P plug/connector type for reliable, productive connectivity and optimal power output
- 120 V AC input voltage for optimal performance with maximum usability
- 120 V AC output voltage for better reliance and maximum usability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|

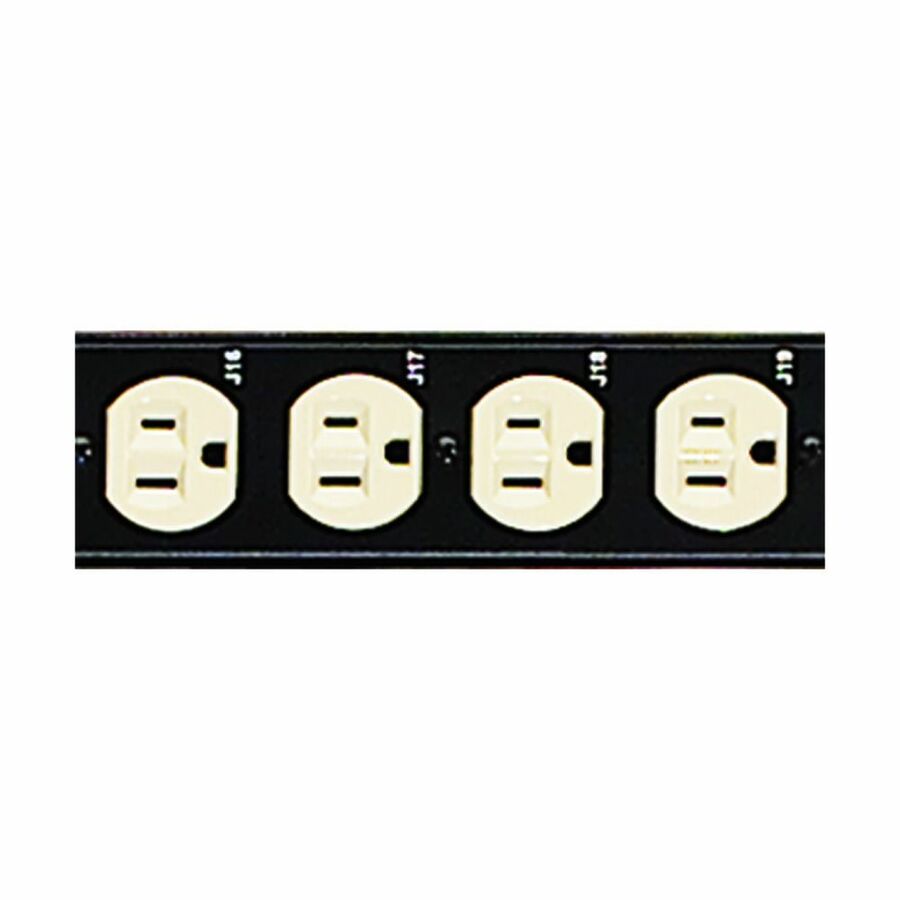

| Receptacle Detail | 8 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 1440 VA |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
