Eaton eATS ePDUs
Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
Designed for switching non phase synchronized AC power sources, the automatic transfer switch ePDUs intelligent circuitry monitors both inputs, providing a fast switch transfer from primary to secondary source power critical equipment without interruption. These ePDUs assure the highest level of redundancy to mission critical applications.
- Offers remote monitoring and email alerts with included network card

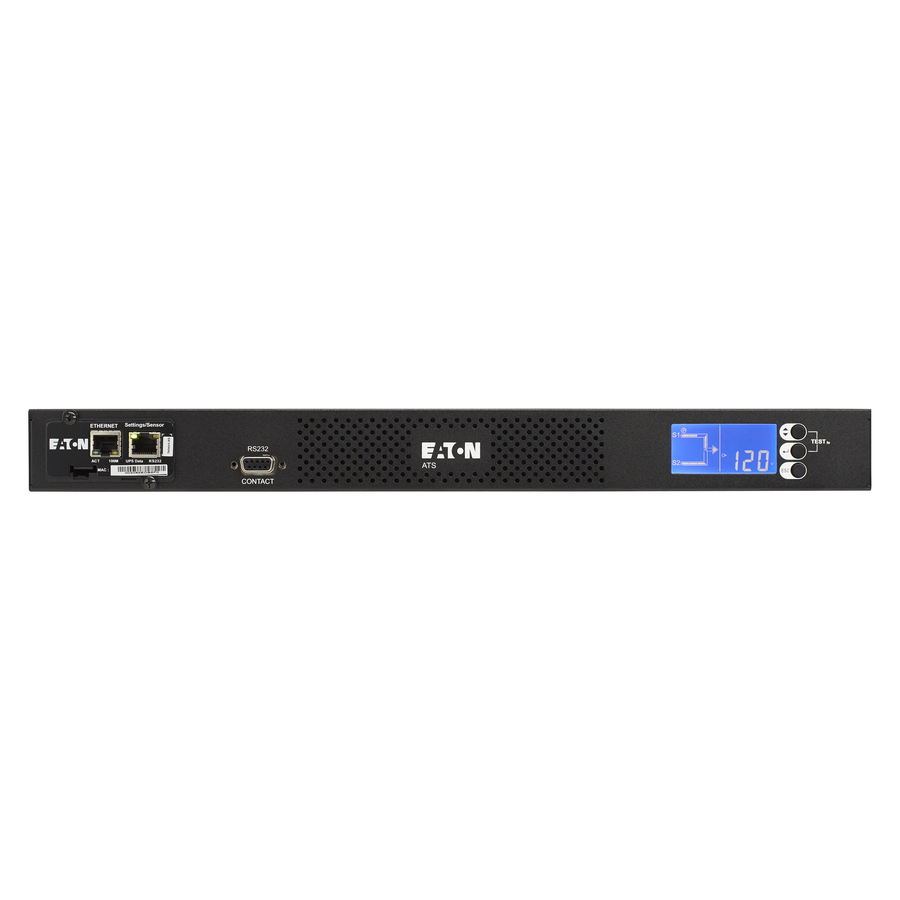

- Simplifies monitoring by displaying current, voltage and power source information on intuitive, graphical LCD
- Power is transferred back to the primary source when it is automatically restored
- Automatically transfers power from the primary source to a secondary source if there is an issue with the primary
- Provides power redundancy to equipment with 1 or 2 power supplies
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Power Rating (Watt) | 1920 W |
| Receptacle Detail | 10 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 2 x NEMA 5-20P |
| Plug/Connector Type | NEMA 5-20P |
| Input Voltage | 120 V AC |
| Input Current | 16 A |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
