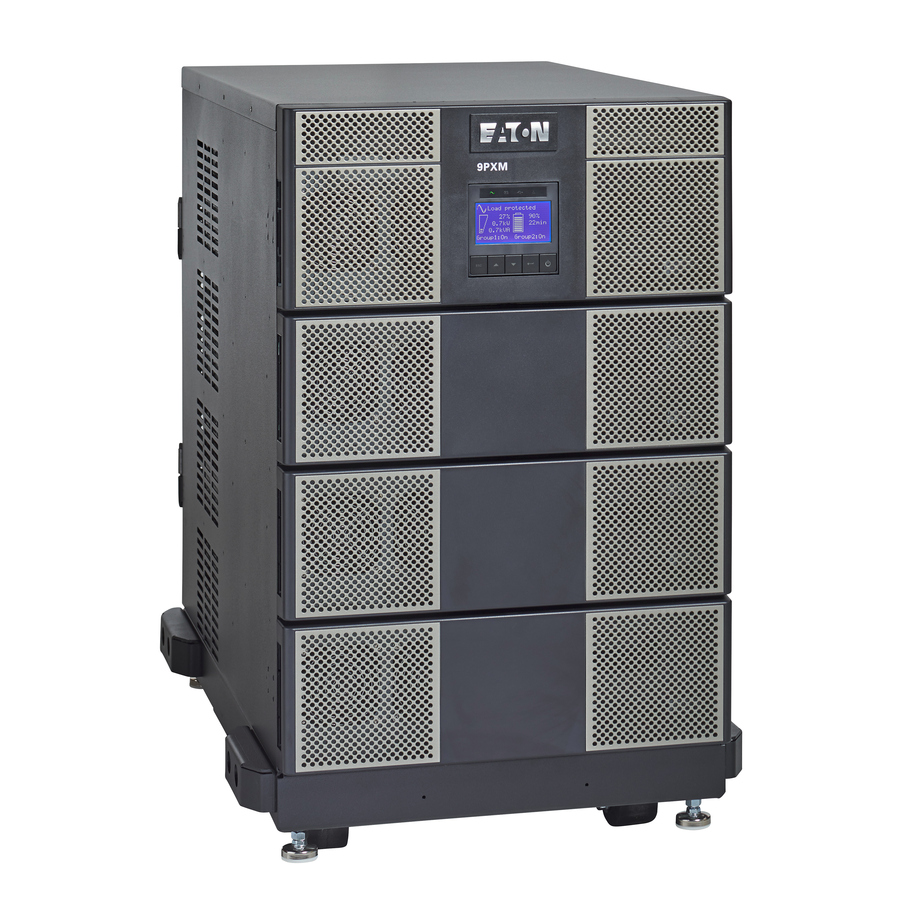

The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Keep your sensitive devices powered with a backup of up to 6 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 3600 W load capacity
- 4000 VA load capacity - work without any interruption during power outages
- 4 Hour typical battery recharge time to allow uninterrupted usage without requiring power outlet
- Hardwired plug/connector type for maximum usability with added reliability
- NEMA 5-20R receptacle type offers ease of operation with maximum efficiency
- Double Conversion Online UPS with network device application/usage to ensure maximum usability and reliable power supply
- 230 V AC input voltage for maximum feasibility and added productivity
- Rack/Tower form factor for added reliability and dependability
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Detail | 2 x NEMA L6-30R |
| Receptacle Type | NEMA L6-30R |
| Plug/Connector Type | Hardwired |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Load Capacity (Watt) | 3600 W |
| Load Capacity (VA) | 4000 VA |
| Backup/Run Time (Full Load) | 6 Minute |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
