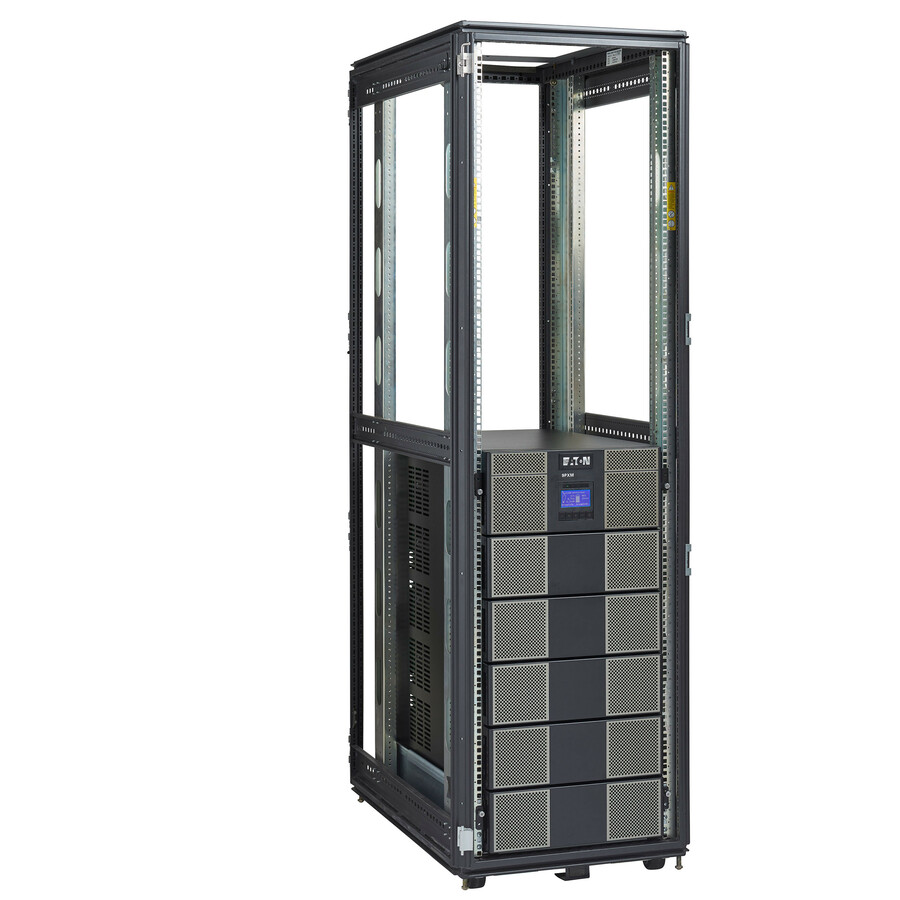

The Eaton 9PXM UPS is a scalable, modular UPS that combines the highest level of reliability with the lowest cost of ownership. Through 4 kVA plug-and-play power modules, the 9PXM delivers an expandable level of N+X redundancy. The 9PXM fits eight or twelve-slot tower enclosures which are easily converted into 14U and 21U rackmount solutions.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- N+X redundancy for power and logic eliminates system-level single point of failure
- Included NETWORK-M2 Gigabit network card enables full remote access and control
- Exclusive ABM technology with 3-stage charging increases internal battery life by 50%
- Keeps equipment running during outages to allow time for file saves and safe shutdown
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Detail | 2 x NEMA L14-30R |
| Receptacle Type | NEMA L14-30R |
| Plug/Connector Type | Hardwired |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Load Capacity (VA) | 16 kVA |
| Backup/Run Time (Full Load) | 6 Minute |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
