Modular, Scalable Battery Backup for Edge Data Centers and Industrial/Commercial Applications

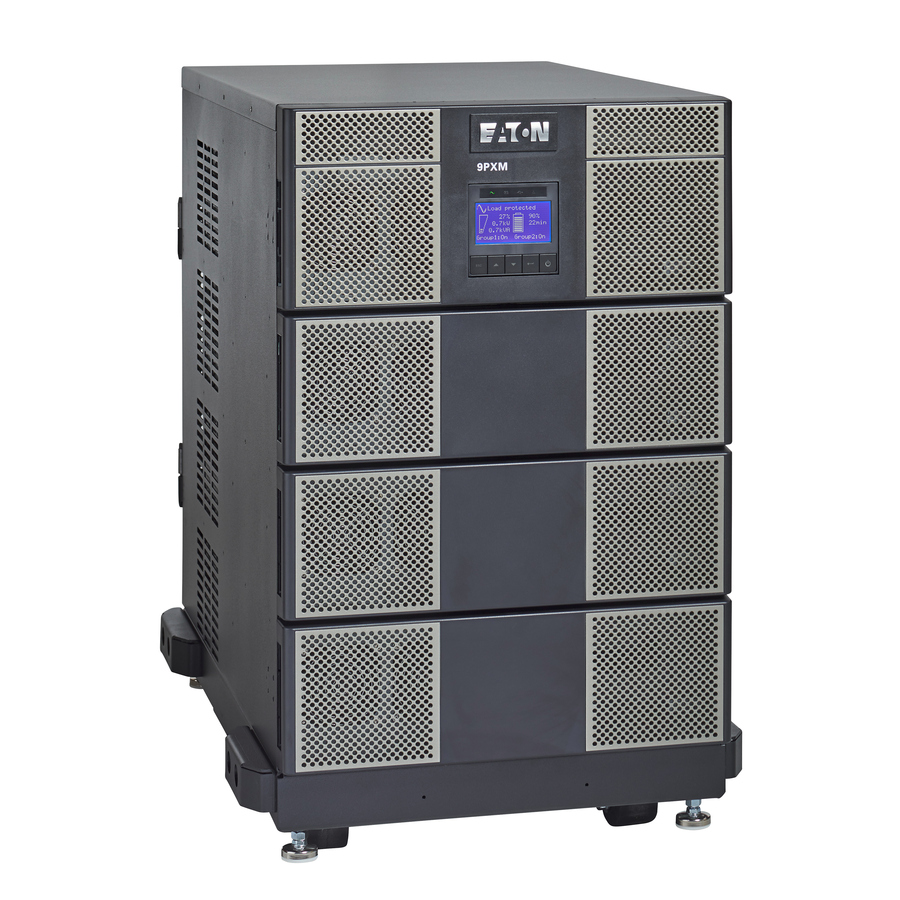

This 9PXM online double-conversion UPS system is superlative power management. Rugged enough to stand up to mission-critical applications, the 9PXM8S4K's compact footprint and N+X redundancy make it a valuable UPS system for colocation and edge data centers, as well as industrial/commercial applications, including retail, financial, government and education. It features hardwired input and output connections.
Protects Mission-Critical Equipment against Damage, Downtime and Data Loss
The 9PXM8S4K provides reliable power protection against blackouts, brownouts, surges and line noise that can damage valuable IT equipment or destroy data. It includes a 14U cabinet, one split-phase 4kVA power module, two internal battery modules (per slot) and a NETWORK-M2 Gigabit network card.
UPS Has a Power Range up to 12kVA
The UPS cabinet accommodates up to four hot-swappable 4kVA power modules (9PXMSPPM, extras sold separately) total for 12kVA N+X redundancy that eliminates system-level single point of failure. All power modules share the load requirements equally, even if one power module fails or is removed.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
The UPS cabinet requires two hot-swappable extended battery modules (9PXMBAT, extras sold separately) per slot. The valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.
Included Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M2 Gigabit network card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. The optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
Intuitive Control Panel Keeps You Informed at a Glance
The UPS control panel includes a graphical LCD, light indicators and function buttons. The control panel provides data and control for the UPS, load status, events, measurements and settings.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Up to 6 minute runtime on full load to preserve critical data from power shortage interruptions
- Prevent critical data loss by staying powered during a blackout with up to 3600 W load capacity
- 4000 VA load capacity provides sufficient backup during power failures
- 4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Hardwired plug/connector type for maximum usability with added reliability
- Hardwired receptacle type offers ease of operation with maximum efficiency
- Double Conversion Online UPS with network device application/usage to ensure maximum usability and reliable power supply
- 230 V AC input voltage for optimal performance with maximum usability
- Rack/Tower form factor for your convenience and simplicity of usage
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage Range | 208 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Load Capacity (Watt) | 3600 W |
| Load Capacity (VA) | 4000 VA |
| Backup/Run Time (Full Load) | 6 Minute |
| Networking & Connectivity | |
|---|---|
| Network Management | SNMP/HTTP Remote Monitoring |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
