The Eaton 9PX is a proven, best-in-class online double-conversion rackmount/tower UPS. The 9PX UPS features ABM technology, which extends battery service life up to 50 percent, and offers flexibility in battery types with nine models offering lithium-ion batteries. Select 9PX UPS models are bundled with theEaton Gigabit Network card, the first in the industry to comply with both UL and IEC cybersecurity standards. To complete your backup power solution, pair your 9PX with the Brightlayer Data Centers suitefor seamless management of your connected equipment.
Applications: IT, edge networks, medical/healthcare, universities, K-12, industrial automation, harsh electrical environments.
- Offers power supply with zero transfer time taken to the battery and proves ideal for voltage sensitive equipments
- Keep your sensitive devices powered with a backup of up to 7 minute at full load
- 3000 W load capacity - backup power for your valuable electronics
- 3000 VA load capacity provides sufficient backup during power failures
- Replaceable battery for optimal performance with maximum charged dependability
- Lead Acid battery chemistry for your convenience and better usability
- NEMA L6-30P plug/connector type for a secure, feasible operation
- NEMA 5-20R receptacle type offers maximum safety, convenience, and increased usability
- Double Conversion Online UPS with data center application/usage to ensure maximum dependability and optimal performance
- 230 V AC input voltage for maximum feasibility and added productivity
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Input Frequency | 40 Hz |
| Receptacle Detail | 1 x NEMA L14-30R |
| Receptacle Type | NEMA L14-30R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Sealed |
| Input Voltage | 230 V AC |
| Output Voltage | 220 V AC |
| Load Capacity (Watt) | 3000 W |
| Load Capacity (VA) | 3000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 1 |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Waveform Type | True Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | Network-M3 Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 1 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 6 ft |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Miscellaneous | |
|---|---|

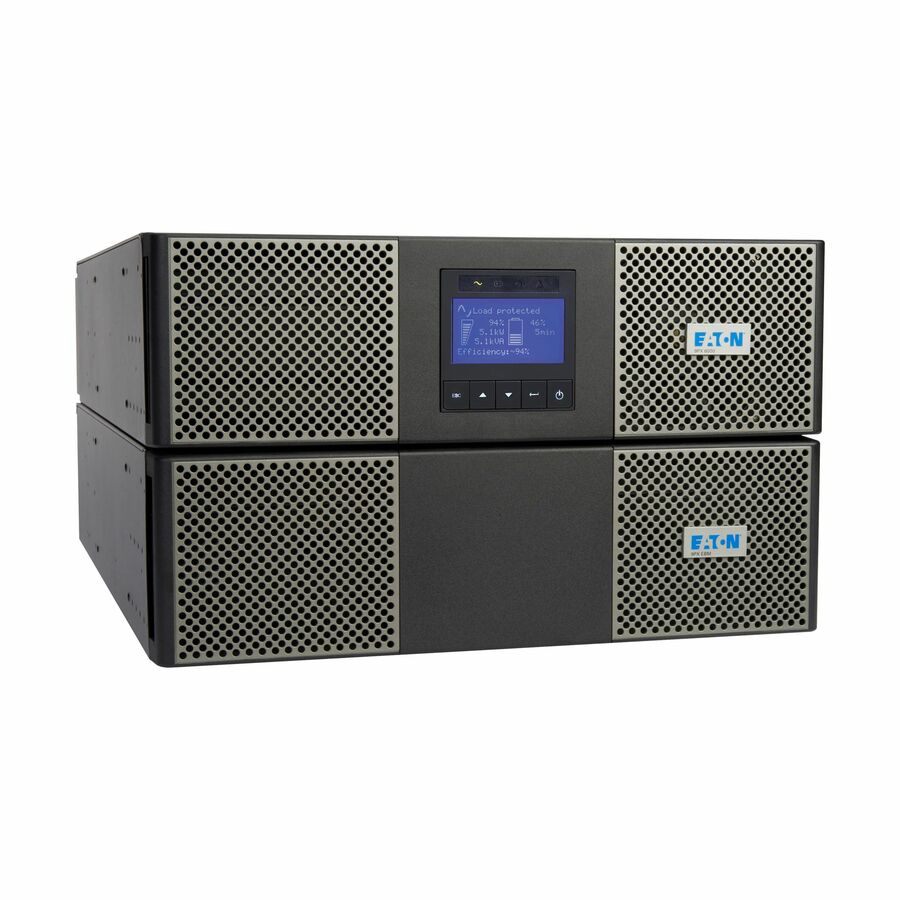

| Product Name | 9PX3K3UNP1 3000VA Rack/Tower UPS |
