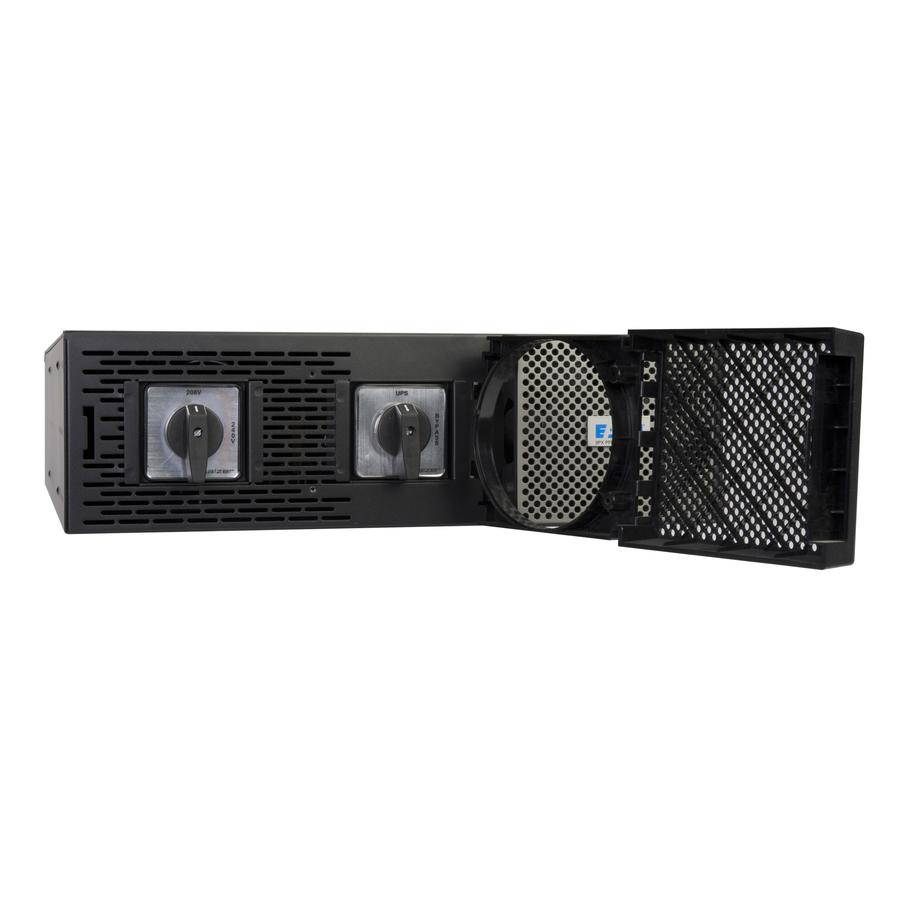

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output
The 9PXPPDM2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.
Compatible with Select Eaton 5kVA/6kVA 9PX UPS Systems
The 9PXPPDM2 works with Eaton's 9PX5K, 9PX6K and 9PX3K3UN 9PX UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains protected against power surges and spikes, even while the UPS system is not present.
Versatile Installation Options
You can mount the 9PXPPDM2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.
- Maintenance bypass allows UPS service or replacement without powering down load
- Resettable circuit breakers protect connected equipment from hazardous overloads
- Provides extra protection against power spikes and surges that can damage equipment
- Converts high-voltage AC output into low voltage for powering low-voltage equipment
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Rack Height | 3U |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
| Miscellaneous | |
|---|---|
| Product Name | 9PXPPDM2 3U PowerPass Distrbution Module |
