208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

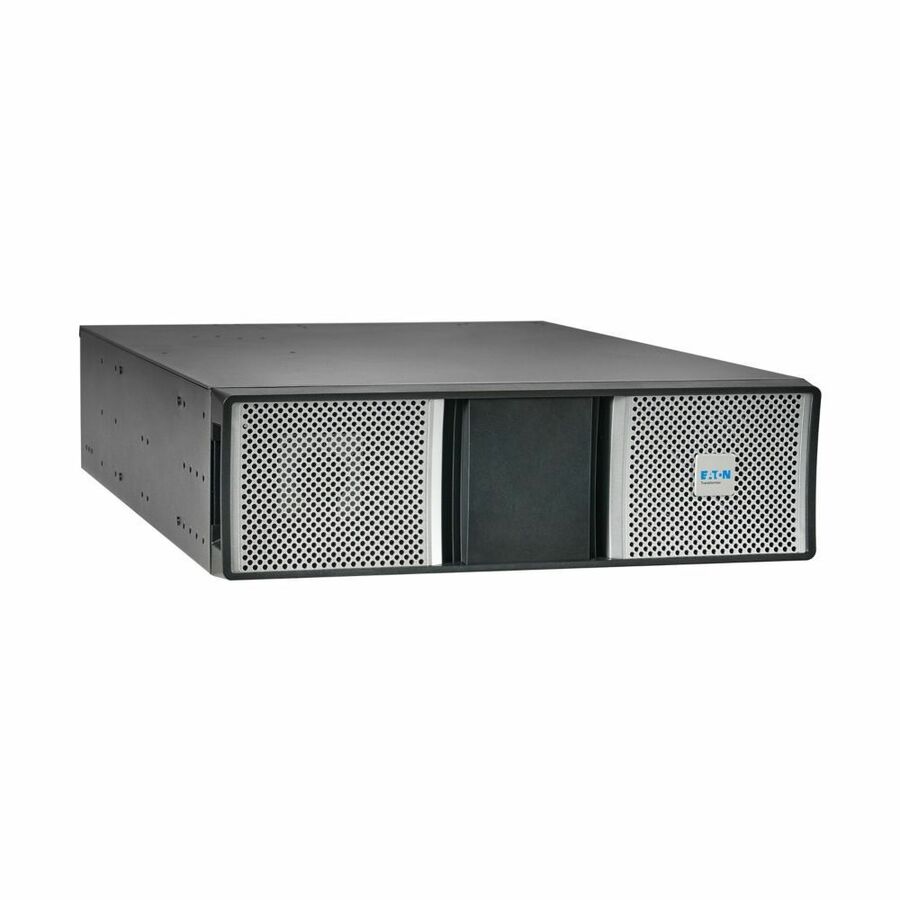

The 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.
Compatible with Select Eaton UPS Systems
The 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.
Versatile Installation Options
You can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.
- PDU allows power to be more efficiently distributed and controlled
- Hardwired receptacle type to ensure maximum productivity with added feasibility
- Single Phase phase PDU for reliable performance with maximum productivity
- Hardwired plug/connector type for reliable, productive connectivity and optimal power output
- 230 V AC input voltage for optimal performance with maximum usability
- 100 V AC output voltage for maximum dependability and added productivity
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 1 x Hardwired |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hardwired |
| Input Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Input Current | 30 A |
| Power Source | UPS |
| Load Capacity (Watt) | 6000 W |
| Load Capacity (VA) | 6000 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Mount Type | Rack-mountable |
| Rack Height | 3U |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Manufacturer | Eaton Corporation |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Energy Star | Yes |
