Features | 6kVA/5.4kW/120V/208V Battery Backup for Distributed IT and Edge Networks

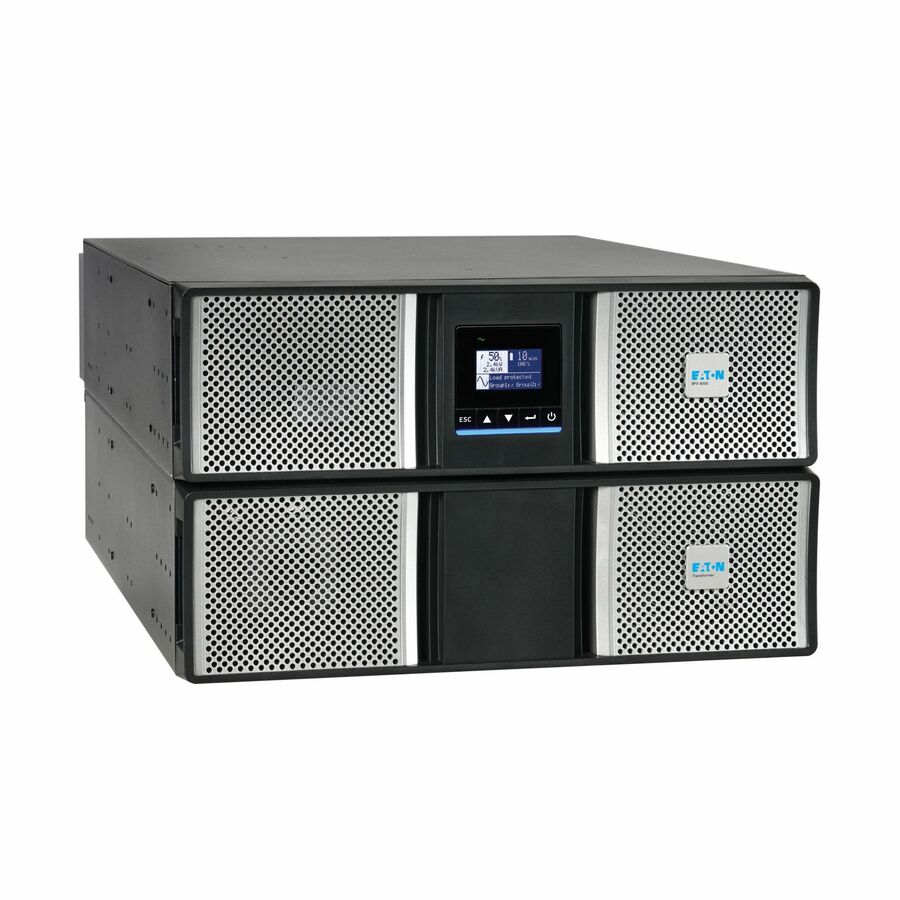

This 9PX G2 rack-mount online double-conversion UPS system provides reliable, low-maintenance battery backup and AC power protection against blackouts, brownouts, surges and line noise that can damage critical IT equipment or destroy data. The 9PX6KTF5G2 is ideal power management for IT managers, data center managers, electrical contractors, integrators, specifying engineers and other end users in business, edge computing, education, government, healthcare, retail and other networking applications.
Delivers Maximum Power Reliability with Best-in-Class Efficiency
The 9PX6KTF5G2 maximizes usable output power and allows you to support more devices, including servers, PoE switches and other networking equipment. The most efficient UPS system in its class, it complies with the latest ENERGY STAR standards to reduce greenhouse gas emissions and to save you money on energy and cooling costs. Load segments with energy metering help you optimize energy use.
Expandable Internal Battery Backup Keeps You Operational Through Power Outages
Exclusive ABM+ technology improves predictive battery replacement analytics to better pinpoint when you should replace UPS batteries. By adding this predictive algorithm, you can determine the expected battery failure date based on real-life usage and conditions. This prevents unexpected downtime caused by waiting too long and unnecessary expense caused by replacing too soon. ABM+ also optimizes charging to increase battery lifespan up to 50%. You can connect up to 12 extended battery modules (9PXEBM180RTG2, sold separately) to add necessary runtime during prolonged power outages.
Included Transformer Helps Accommodate a Range of Connected Equipment
The 9PXTFMR5G2 transformer permits step-down voltage from 208V to 120V to allow connection of a wider range of components.
Included Gigabit Network Interface Offers 24/7 Remote Access
The NETWORK-M3 cybersecure network management card enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be upgraded remotely through the NETWORK-M3 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks.
High-Visibility LCD Interface Keeps You Informed at a Glance
The high-contrast color LCD provides control settings and critical information to help diagnose any issues. A large color LED bar makes it easy to diagnose UPS status from a distance and quickly locate units that require attention. The interface rotates to accommodate both rack-mount and tower configurations, and it tilts up to 45 degrees for more comfortable viewing.
Versatile Installation Options
You can mount the 9PX6KTF5G2 in 6U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation. The 10-foot power cord with NEMA L6-30P plug connects to a compatible AC outlet. A cable gland is included for alternate hardwire input.
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Best-in-class efficiency results in reduced energy costs and greenhouse gas emissions
- Included NETWORK-M3 Gigabit network card enables full remote access and control
- Exclusive ABM+ technology and analytics help you pinpoint when to replace batteries
- Optional extended battery modules allow extra runtime to keep equipment powered
- 3-year limited warranty
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| Circuit Breaker | Yes |
| Surge Suppression | Yes |
| EPO Port | Yes |
| Receptacle Detail | 1 x Hardwired |
| Receptacle Type | Hardwired |
| Plug/Connector Type | NEMA L6-30P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Valve-regulated |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 230 V AC |
| Output Voltage | 120 V AC |
| Input Current | 24.40 A |
| Efficiency Detail | 98.9% (Eco Mode) |
| Load Capacity (Watt) | 5400 W |
| Load Capacity (VA) | 6000 VA |
| Output Frequency | 60 Hz |
| Output Power Factor | 0.9 |
| DC System Voltage | 180 V DC |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Waveform Type | Pure Sine Wave |
| Networking & Connectivity | |
|---|---|
| Network Management | Network Card |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Alarm | Remote Shutdown |
| Manufacturer | Eaton Corporation |
| Thermal Dissipation | 338.50 W |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Cables | |
|---|---|
| Cord Length | 10 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Energy Star | Yes |
| Miscellaneous | |
|---|---|
| Product Name | 9PX G2 9PX6KTF5G2 6000VA Rack/Tower UPS |
