Efficient. Scalable. Innovative.

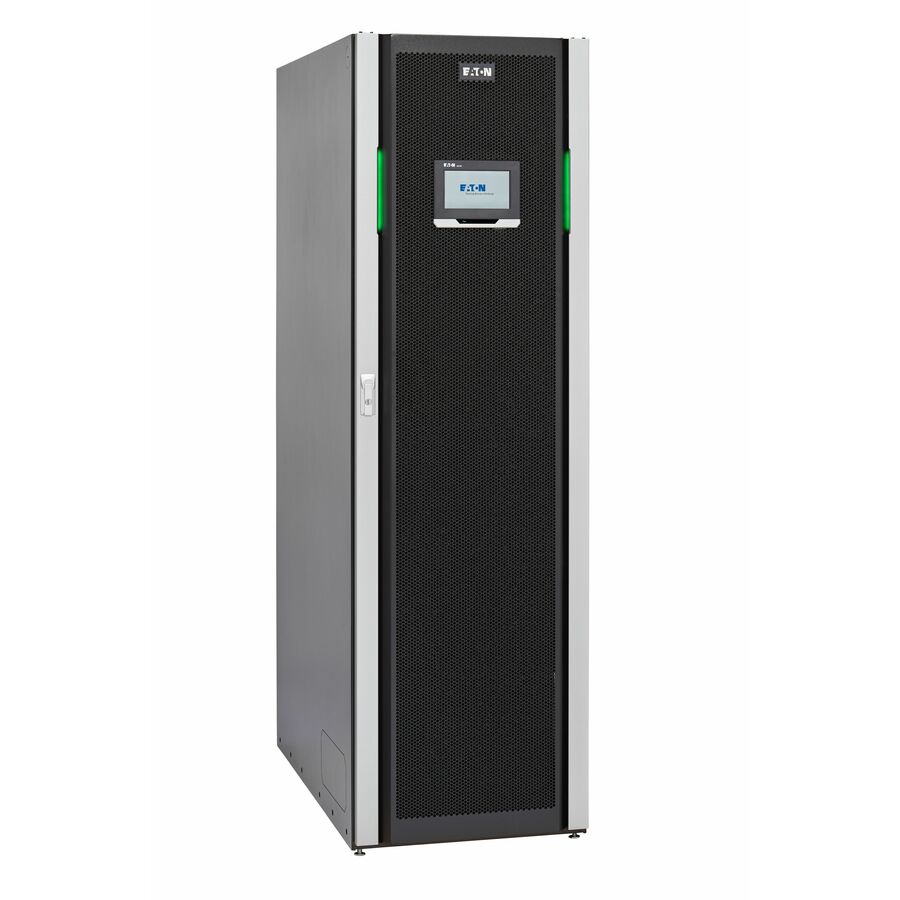

The Eaton® 93PM UPS combines high efficiency and reliability with an eye-catching design. A space-saving, scalable and flexible device that's as easy to deploy as it is to manage; it's the perfect three-phase white or grey space solution for today's data center.
Lowest TCO (total cost of ownership)
- Conserve valuable data center floor space with the compact footprint and optional maintenance bypass
- Grow effortlessly with vertical scalability, reducing cost and unexpected future growth risks
- Reduce power and cooling OPEX through industry-leading energy efficiency - Up to 98.5 percent efficiency with Energy Saver System (ESS) - Up to 95 percent efficiency in double-conversion mode
Easy deployment
- Provides flexible configurability
- Includes swappable technology to scale in minutes and minimize downtime
Easy management
- Track statistics on energy savings, battery time and outages
- Profile your load and much more with the friendly graphical LCD touchscreen interface
- View system status from a distance with the green/yellow/ red LED light bars
Advanced IT integration
- Supports optional communication cards that allow remote access via the HTTP(S), SNMP, MODBUS TCP/IP, Modbus RTU and BACnet IP protcols
- Manage your power devices in your physical or virtual environment with Eaton's Power Xpert® software and Intelligent Power™ Software Suite
- Increase uptime through 24x7 remote monitoring and reporting capabilities using Eaton's PredictPulse™ service that alerts technicians during critical events and results in faster resolutions when a problem is detected; learn more at Eaton.com/PredictPulse
- Bottom cable entry Bottom cable entry is standard with top cable entry available via optional sidecar
- Communications and connectivity; Built-in device and host USB - Five alarm inputs and dedicated EPO Alarm relay output - Four communication slots
- Color touchscreen LCD interface
- Serviceable fan assembly
- Swappable power modules (20 kW) with independent control and power
- Soft start controls
- Static switch assembly
- Input/output connections
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Screen / Display | |
|---|---|
| Display | LCD |
| Power & Battery | |
|---|---|
| Phase | Three Phase |
| Input Frequency | 50 Hz |
| EPO Port | Yes |
| Receptacle Type | Hardwired |
| Plug/Connector Type | Hard Wire 4-wire |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Efficiency | 95% |
| Load Capacity (Watt) | 20 kW |
| Output Frequency | 50 Hz |
| Output Power Factor | 0.8 |
| DC System Voltage | 480 V DC |
| Networking & Connectivity | |
|---|---|
| Network Management | HTTPS/SNMP/Modbus TCP-IP/Modbus RTU/BACnet IP |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| General Features | |
|---|---|
| Manufacturer | Eaton Corporation |
